Component Location

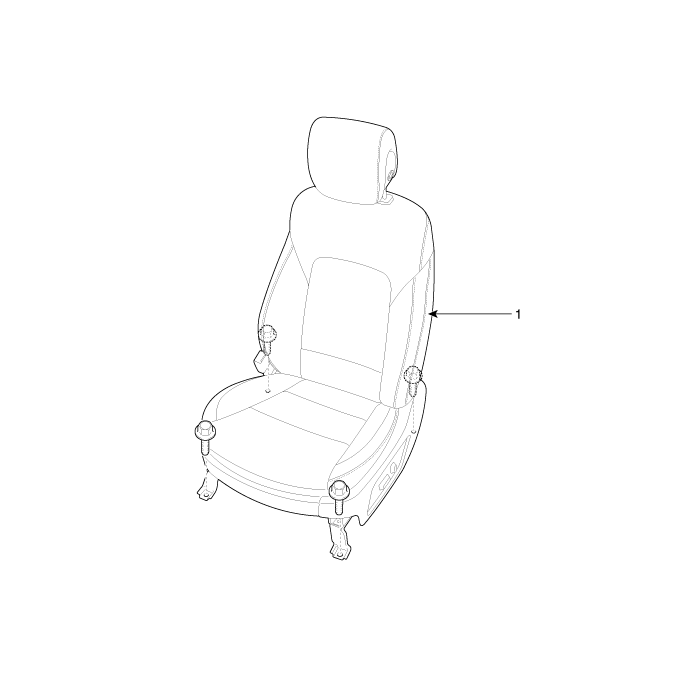

1. Front seat assembly


Components and Components Location
Components 1. Front seat headrest 2. Front seat headrest guide 3. Front seat back cover 4. Front seat back warmer pad 5. Front seat back pad 6. Front seat back frame assembly 7. Front seat back board 8. ...

Front Seat Assembly. Repair procedures
Replacement 1. Remove the front seat track mounting cover. 2. After loosening the mounting bolts, remove the front seat assembly (A). Tightening torque : 34.3 ~ 53.9 N.m (3.5 ~ 5.5 kgf.m, 25.3 ~ 39.8 lb-ft) ...
