Hyundai Santa Fe: Components and Components Location - AVN System - Body Electrical SystemHyundai Santa Fe: Components and Components Location

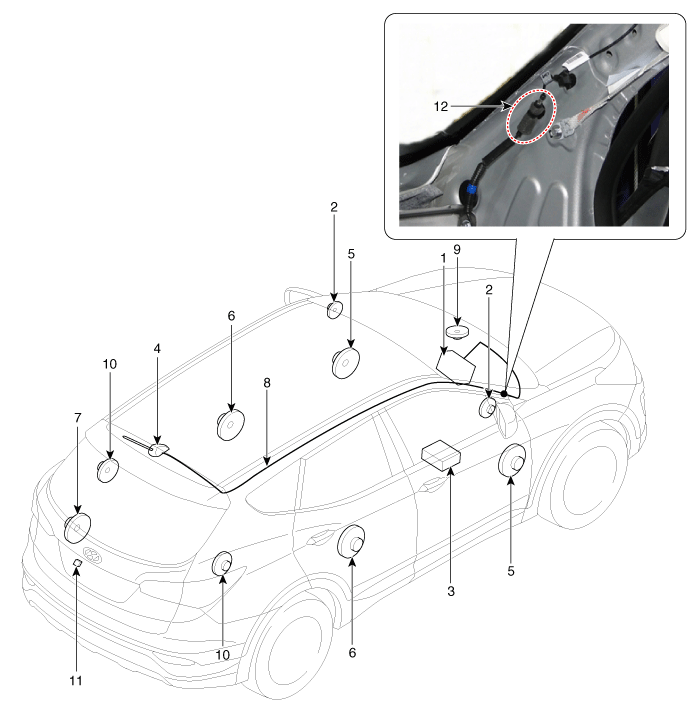

Components Location

1. AVN (A/V & Navigation head unit)
2. Tweeter speaker
3. External amplifier
4. Roof antenna (GPS)
5. Front door speaker
6. Rear door speaker
7. Subwoofer speaker
8. Antenna feeder cable
9. Center speaker
10. Surround speaker (Option)
11. Back view camera
12. Feeder cable joint connector


Specifications
Specifications Item Specification Power source DC 14.4V (-) ground Frequency range / Channel space FM : 87.5 ~ 107.9 MHz / 200 KHz AM : 530 ~ 1710 KHz / 10 KHz Tuning type PLL SYNTHESIZED TUNING Impedance ...

Schematic Diagrams
System Block Diagram ...
