Hyundai Santa Fe: Crach Pad Center Panel. Components and Components Location - Crash Pad - Body (Interior and Exterior)Hyundai Santa Fe: Crach Pad Center Panel. Components and Components Location

Hyundai Santa Fe DM 2013-2018 Service Manual / Body (Interior and Exterior) / Crash Pad / Crach Pad Center Panel. Components and Components Location

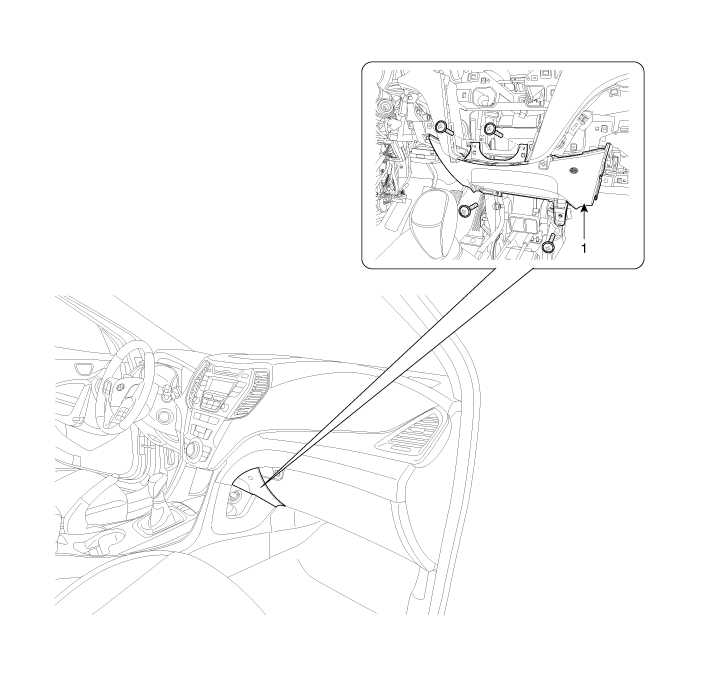

Component Location

1. Crash pad center lower panel
