Hyundai Santa Fe: Exhaust Manifold. Components and Components Location
Components
|

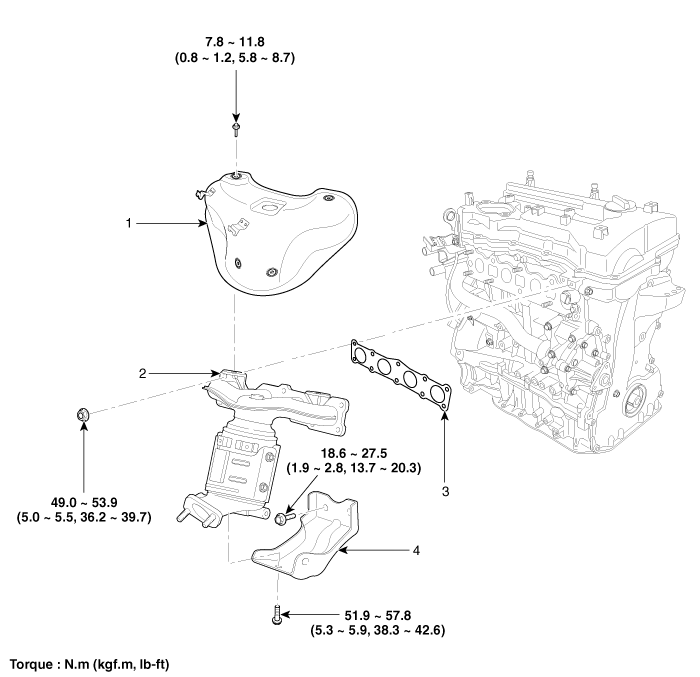

1. Heat protector 2. Exhaust manifold |
3. Exhaust manifold gasket 4. Exhaust manifold stay |
Intake Manifold. Repair procedures
Removal and Installation 1. Disconnect the battery negative terminal. 2. Remove the air cleaner assembly. 3. Disconnect the intake OCV (Oil control valve) connector (A). 4. Disconnect the VIS (Variable ...
Exhaust Manifold. Repair procedures
Removal and Installation 1. Remove the engine cover. 2. Disconnect the battery negative terminal. 3. Disconnect the front oxygen sensor connector (A) and the rear oxygen sensor connector (B). 4. Remove ...
