Hyundai Santa Fe (DM): Front Seat Shield Inner Cover. Components and Components Location

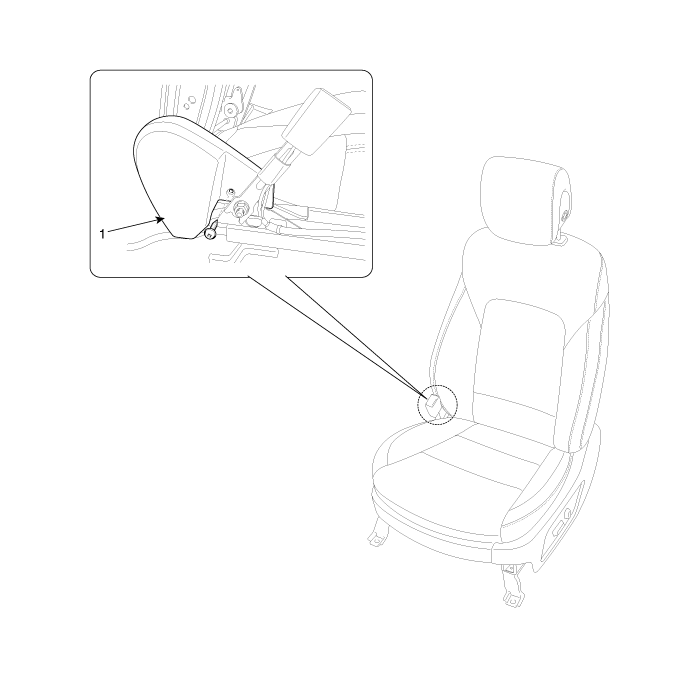

Component Location
|
1. Front seat shield inner cover |
|
Front Seat Shield Outer Cover. Repair procedures
Replacement • Put on gloves to protect your hands. • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage. • ...
Front Seat Shield Inner Cover. Repair procedures
Replacement • Put on gloves to protect your hands. • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage. • ...
