Hyundai Santa Fe: Front Driveshaft. Components and Components Location
Components
|

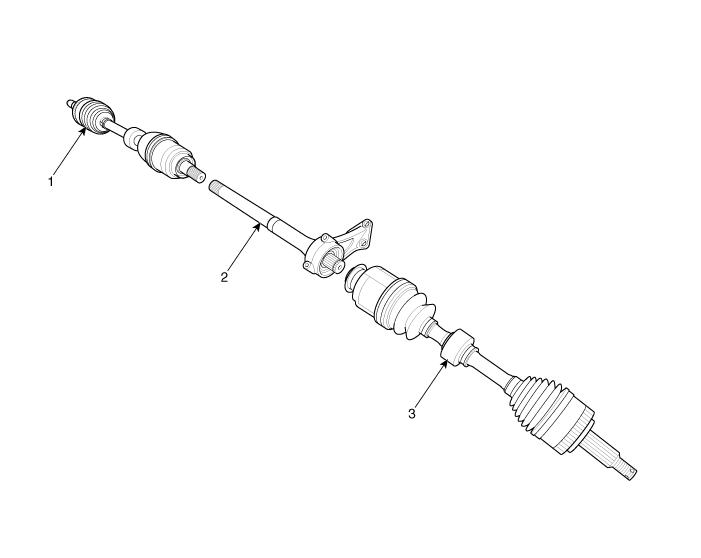

1. Front driveshaft (LH) 2. Inner shaft bearing bracket |
3. Front driveshaft (RH) |

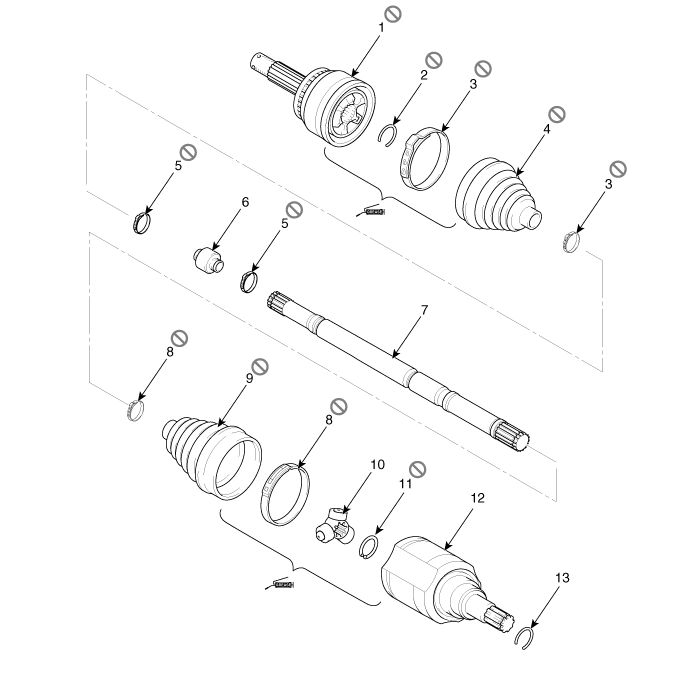

| [LH] |
|
1. BJ assembly 2. Clip 3. BJ boot band 4. BJ boot 5. Dynamic damper band 6. Dynamic damper 7. Shaft |
8. TJ boot band 9. TJ boot 10. Spider assembly 11. Circlip 12. TJ housing 13. Circlip |

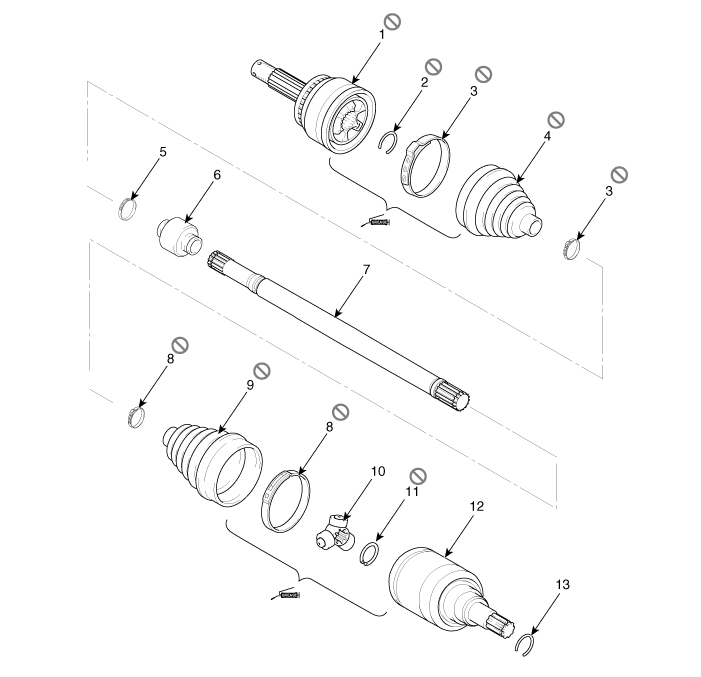

| [RH] |
|
1. BJ assembly 2. Clip 3. BJ boot band 4. BJ boot 5. Dynamic damper band 6. Dynamic damper 7. Shaft |
8. TJ boot band 9. TJ boot 10. Spider assembly 11. Circlip 12. TJ housing 13. Circlip |
Front Driveshaft. Repair procedures
Removal 1. Remove the front wheel and tire (A) from front hub . Tightening torque: 88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft) Be careful not to damage to the hub bolts when removing the front ...
