Hyundai Santa Fe: Front Wheel Components and Components Location - Transfer Assembly - 4 Wheel Drive (4WD) SystemHyundai Santa Fe: Front Wheel Components and Components Location

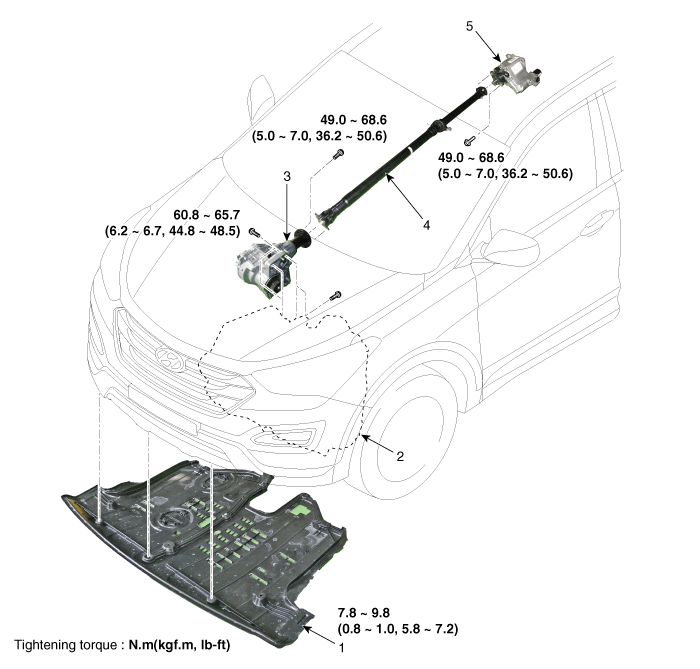

Components Location

1.Under cover
2. Transaxle Assembly
3. Transfer assembly
4. Propeller shaft
5. Coupling assembly


Transfer Fluid. Repair procedures
Inspection • Transfer oil should be inspected and refilled every 60000 km (40000 mile) / 4 year. 1. Remove the under cover (A). 2. Remove the oil filler plug (A). 3. Check the oil level. Oil level must ...

Front Wheel Repair procedures
Removal 1. Remove the driveshaft and axle. 2. Remove the propeller shaft (A). Tightening torque : 49.0~68.6N.m (5.0~7.0kgf.m, 36.2~50.6lb-ft) 3. Loosen the transfer upper & lower mounting bolts. (transfer ...
