Hyundai Santa Fe (DM): Front Wiper Motor. Components
and Components Location - Windshield Wiper/Washer - Body Electrical SystemHyundai Santa Fe (DM): Front Wiper Motor. Components and Components Location

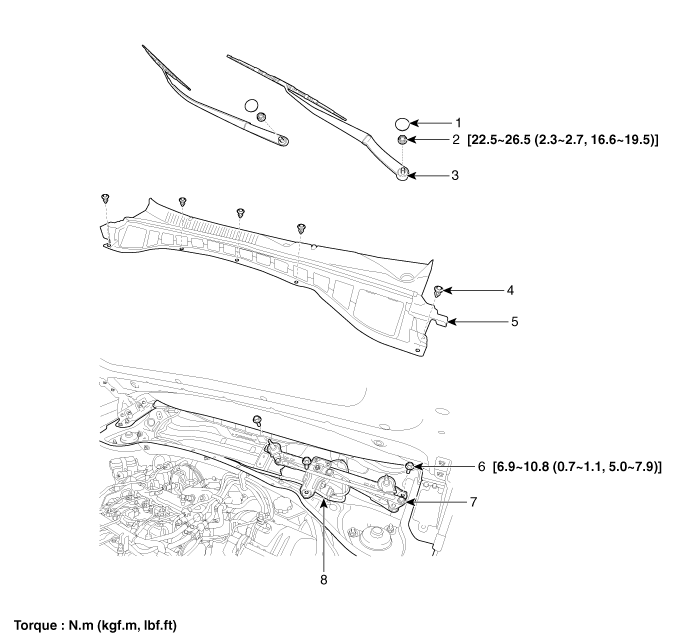

Component Location

1. Cap
2. Nut
3. Wiper arm & blade
4. Rivet
5. Cowl top cover
6. Bolt
7. Wiper motor & linkage assembly
8. Wiper motor connector


Windshield Wiper-Washer Switch. Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the steering column upper and lower shrouds (A) after loosening 3 screws. 3. Disconnect the connector (A). 4. If necessary of removing ...

Front Wiper Motor. Repair procedures
Removal 1. Loosen the windshield wiper arm nut after removing a wiper cap (A). 2. Remove the windshield wiper arm and blade (B) 3. If necessary, release the wiper blade fixing clip by pulling up and remove ...
