Hyundai Santa Fe: Fuel Pressure Control Valve. Schematic Diagrams - Engine Control System - Engine Control/Fuel SystemHyundai Santa Fe: Fuel Pressure Control Valve. Schematic Diagrams

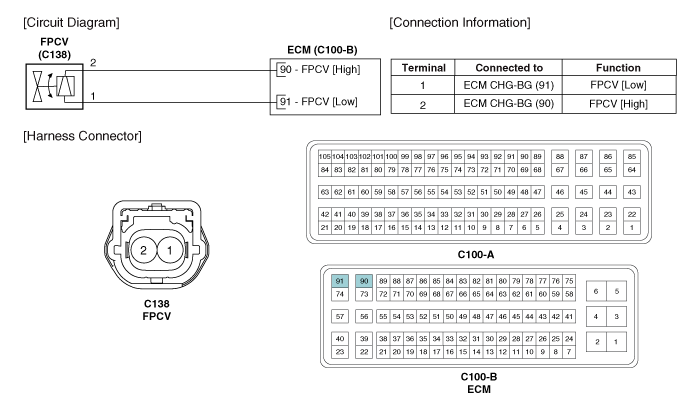

Circuit Diagram


Fuel Pressure Control Valve. Repair procedures
Inspection 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Disconnect the fuel pressure regulator valve connector. 3. Measure resistance between the fuel pressure regulator ...
