Hyundai Santa Fe (DM): Headlamp, Front position lamp, Front turn signal lamp, Front fog lamp bulb replacement

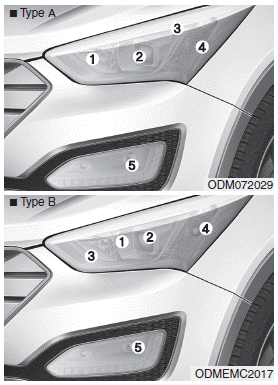

(1) Headlamp (High)
(2) Headlamp (Low)
(3) Front position lamp
(4) Front turn signal lamp/Front side marker
(5) Front fog lamp (if equipped)
- Headlamp bulb
- Front fog lamp bulbs
- Headlamp (HID type), position (LED), turn signal, and front fog lamp bulb replacement
Light bulbs
WARNING - Working on the lights Prior to working on the light, firmly apply the parking brake, ensure that the ignition switch is turned to the “LOCK”position and turn off the lights to avoid sudden ...
Headlamp bulb
WARNING - Halogen bulbs Halogen bulbs contain pressurized gas that will produce flying pieces of glass if broken. Always handle them carefully, and avoid scratches and abrasions. If the bulbs are lit, ...
