Hyundai Santa Fe (DM): Hood Latch. Components and Components Location - Hood - Body (Interior and Exterior)Hyundai Santa Fe (DM): Hood Latch. Components and Components Location

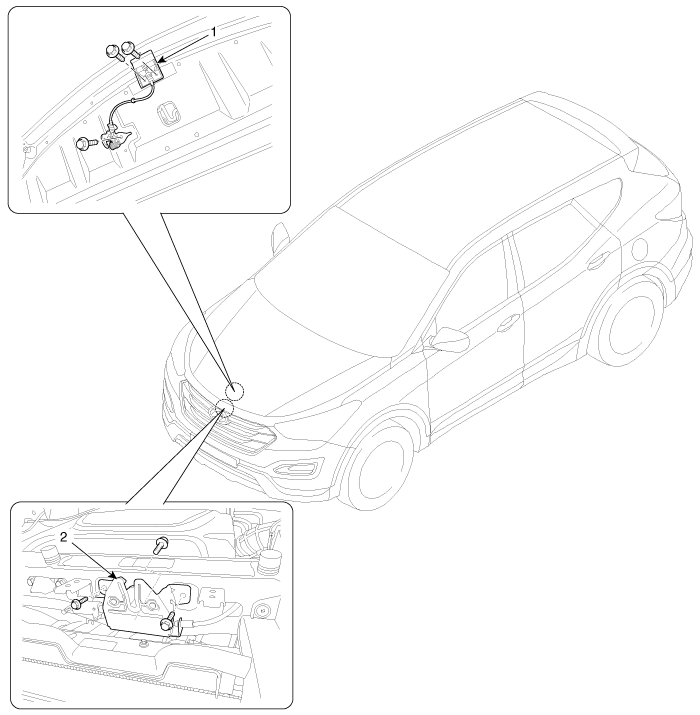

Component Location

1. Hood upper latch assembly
2. Hood lower latch assembly


Hood Latch Release Handle. Repair procedures
Replacement 1. Using a screwdriver or remover, remove the hood release handle (A). • Use a 6mm hex bit to press the center until the handle easily pulls off the post. 2. Install in the reverse order ...

Hood Latch. Repair procedures
Replacement [Hood upper latch assembly] 1. After loosening the mounting bolts, then remove the hood upper latch assembly (A). Tightening torque : 7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft) 2. Install ...
