Hyundai Santa Fe: Hood Latch Release Handle. Components and Components Location - Hood - Body (Interior and Exterior)Hyundai Santa Fe: Hood Latch Release Handle. Components and Components Location

Hyundai Santa Fe DM 2013-2018 Service Manual / Body (Interior and Exterior) / Hood / Hood Latch Release Handle. Components and Components Location

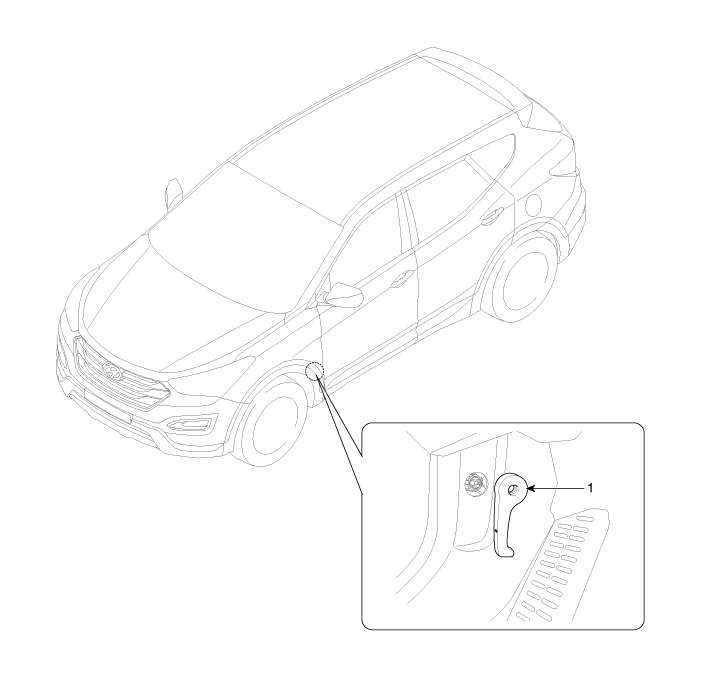

Component Location

1. Hood latch release handle
