Hyundai Santa Fe: Ignition Coil. Schematic Diagrams

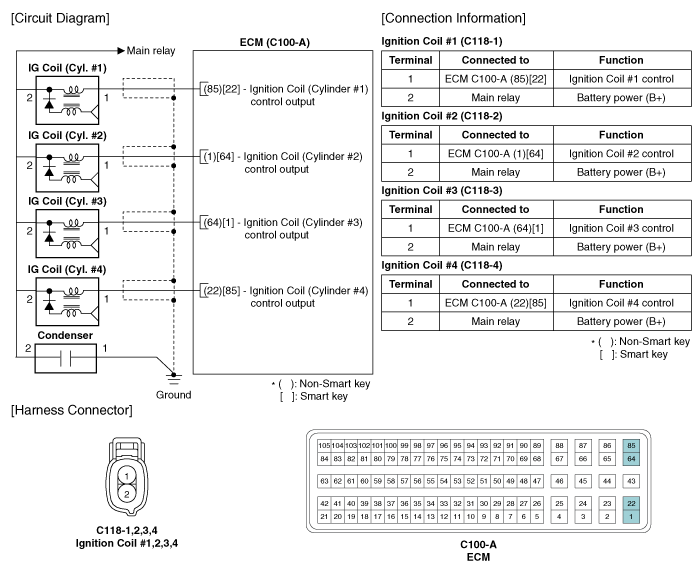

Circuit Diagram
Ignition Coil. Specifications
Specification Item Specification Primary Coil Resistance (Ω) 0.79 ± 15％ [20°C (68°F)] Secondary Coil Resistance (kΩ) 7.0 ± 15％ [20°C (68°F)] ...
Ignition Coil. Repair procedures
Removal 1. Disconnect the battery nagative terminal. 2. Remove the engine cover. 3. Disconnect the ignition coil connector (A). • When removing the ignition coil connector, pull the lock pin (A) and ...
