Hyundai Santa Fe: Center Pillar Trim. Components and Components Location - Interior Trim - Body (Interior and Exterior)Hyundai Santa Fe: Center Pillar Trim. Components and Components Location

Hyundai Santa Fe DM 2013-2018 Service Manual / Body (Interior and Exterior) / Interior Trim / Center Pillar Trim. Components and Components Location

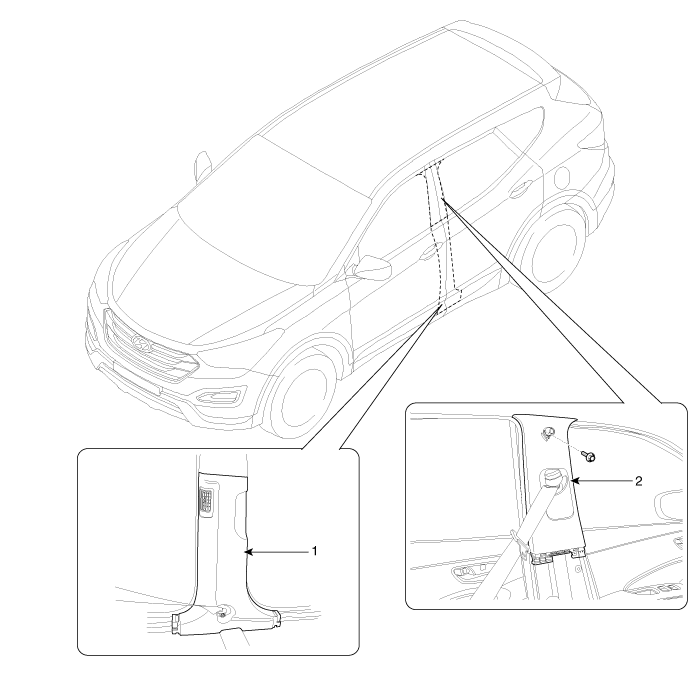

Component Location

1. Center pillar lower trim
 2. Center pillar upper trim


Front Pillar Trim. Repair procedures
Replacement • Put on gloves to protect your hands. • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage. • ...

Center Pillar Trim. Repair procedures
Replacement [Center pillar lower trim] (Driver's) • Put on gloves to protect your hands. • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around ...
