Hyundai Santa Fe (DM): Power Seat Control Switch. Schematic Diagrams - Seat Electrical - Body Electrical SystemHyundai Santa Fe (DM): Power Seat Control Switch. Schematic Diagrams

Hyundai Santa Fe DM 2013-2018 Service Manual / Body Electrical System / Seat Electrical / Power Seat Control Switch. Schematic Diagrams

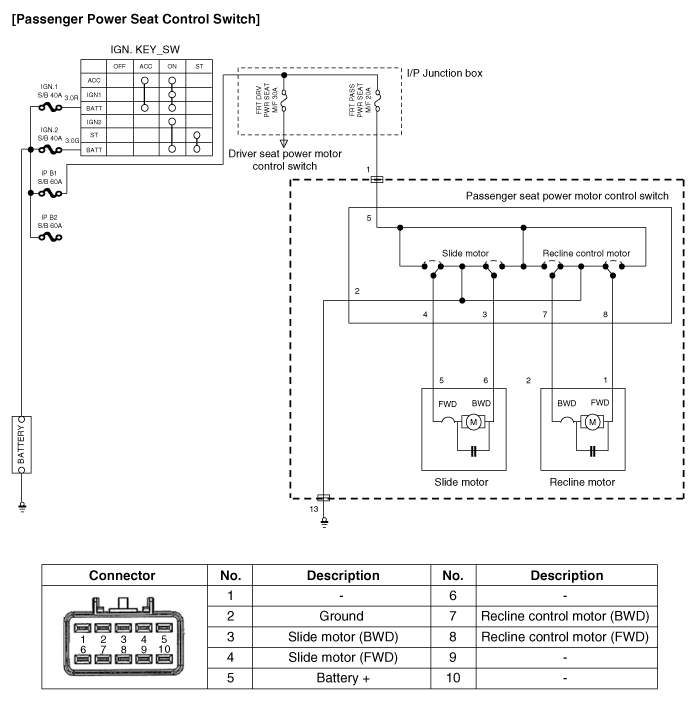

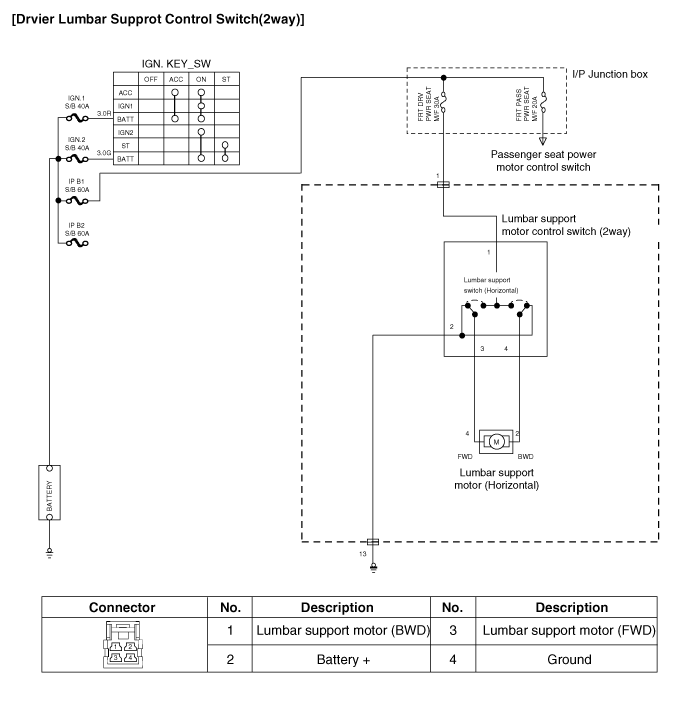

Circuit Diagram
