Hyundai Santa Fe (DM): Power Seat Control Switch. Repair
procedures
Inspection
Power Seat Control Switch |
1. |
With the power seat switch in each position, make

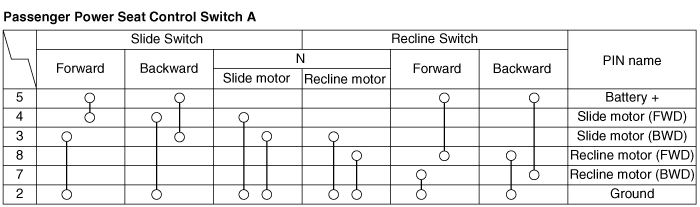

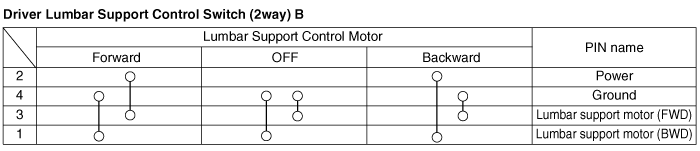

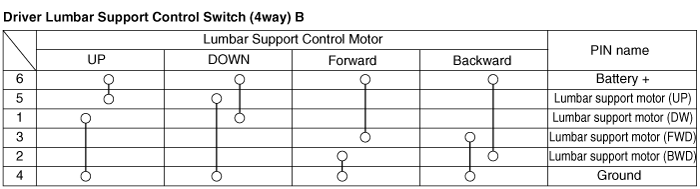

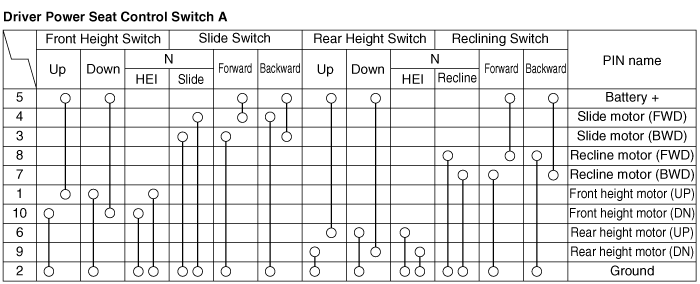

sure that continuity exists between the terminals below. If continuity
is not as specified, replace the power seat switch.
|
Removal
1. |
Disconnect the negative (-) battery terminal.
|
2. |
Remove the front seat shield outer cover.
|
3. |
Remove the power seat control switch (A) and lumbar
support switch (B).
|
Installation
1. |
Install the power seat control switch after connecting
the connector.
|
Power Seat Control Switch. Schematic
Diagrams
Circuit Diagram ...
