Hyundai Santa Fe (DM): Purge Control Solenoid Valve (PCSV). Schematic Diagrams - Engine Control System - Engine Control/Fuel SystemHyundai Santa Fe (DM): Purge Control Solenoid Valve (PCSV). Schematic Diagrams

Hyundai Santa Fe DM 2013-2018 Service Manual / Engine Control/Fuel System / Engine Control System / Purge Control Solenoid Valve (PCSV). Schematic Diagrams

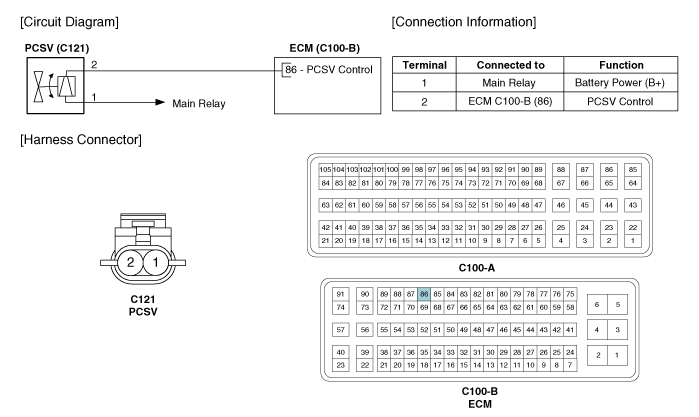

Circuit Diagram


Purge Control Solenoid Valve (PCSV). Specifications
Specification Item Specification Coil Resistance (Ω) 19.0 ~ 22.0 [20°C(68°F)] ...

Purge Control Solenoid Valve (PCSV). Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the PCSV connector. 3. Measure resistance between the PCSV terminals 1 and 2. 4. Check that the resistance is within the specification. Specification: ...
