Hyundai Santa Fe (DM): Rear Body. Body Repair - Body Dimensions - Body (Interior and Exterior)Hyundai Santa Fe (DM): Rear Body. Body Repair

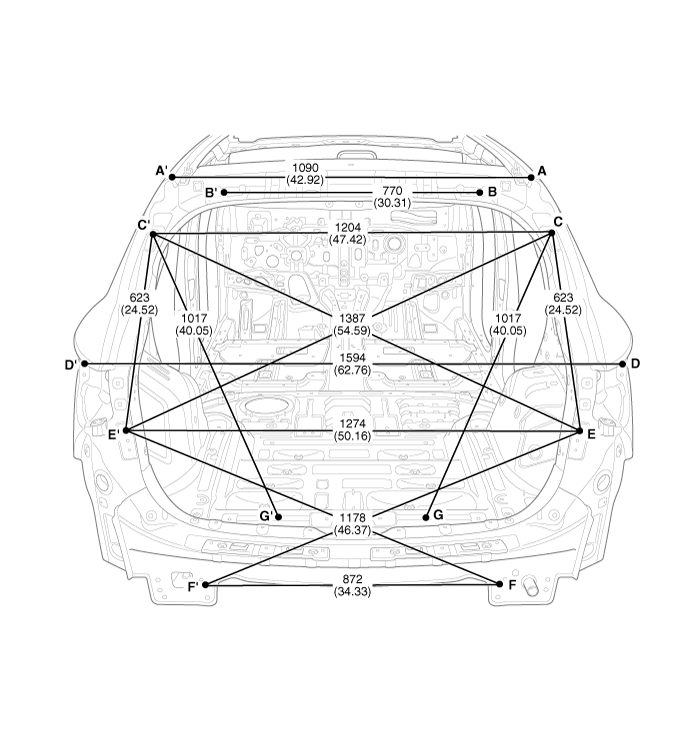

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

Side outer panel rear corner

Tail gate hinge mounting hole (Ø12)

Tail gate hinge mounting hole (Ø12)

Tail gate lifter mounting hole (Ø11)

Rear combination lamp mounting hole
(Ø10)
Rear bumper mounting hole (Ø9)

Rear bumper mounting hole (20X18)

Rear bumper mounting hole (20X18)

Rear transverse trim mounting hole
(Ø8.5)
