Hyundai Santa Fe: Under Body. Body Repair
Under Body (2WD)

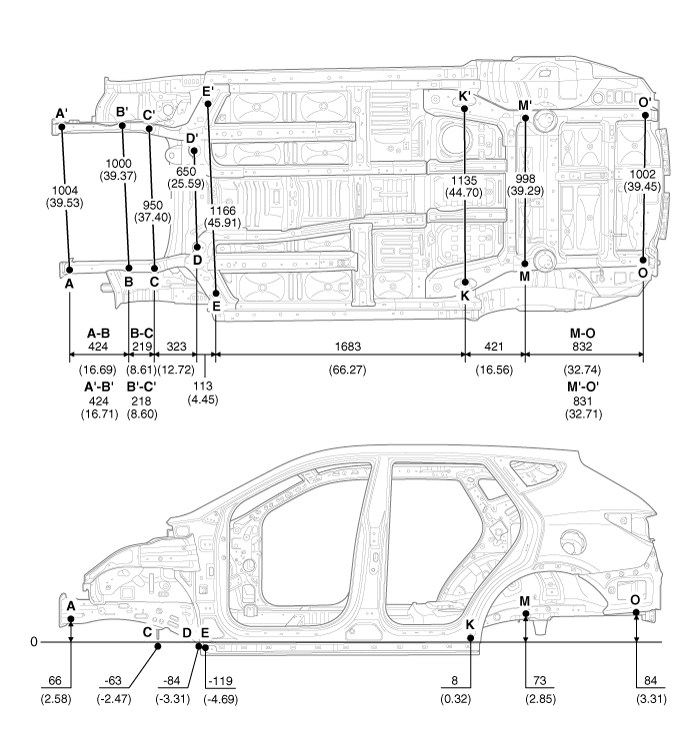

| Projected Dimensions |
|
* These dimensions indicated in this figure are actual-measurement
dimensions. [ Unit : mm (inch) ] |
| Actual-Measurement Dimensions |
|
* These dimensions indicated in this figure are actual-measurement
dimensions. [ Unit : mm (inch) ] |
|
|
|
|
|
Front side member tooling hole (Ø25) |
Front side member tooling hole (Ø25) |
Side cover mounting hole (B/B: Ø9/Ø11) |
|
|
|
|
|
Front sub frame mounting bolt |
Front sub frame mounting hole (Ø18) |
Floor under cover mounting hole (Ø6.6) |
|
|
|
|
|
Front sub frame mounting hole (Ø11) |
Floor under cover mounting hole (Ø10) |
Center floor side member tooling hole (Ø8) |
|
|
|
|
|
Center floor side member tooling hole (Ø6.6) |
Center floor rear member tooling hole (Ø10) |
Center floor rear member tooling hole (Ø10) |
|
|
|
|
|
Side sill inner panel tooling hole (Ø9) |
Rear trailing arm mounting hole (Ø19) |
Rear sub frame mounting hole (Ø13) |
|
|
|
|
|
Rear sub frame mounting hole (Ø22) |
Rear floor side member tooling hole (Ø8) |
Rear floor side member tooling hole (Ø13) |
Under Body (4WD)

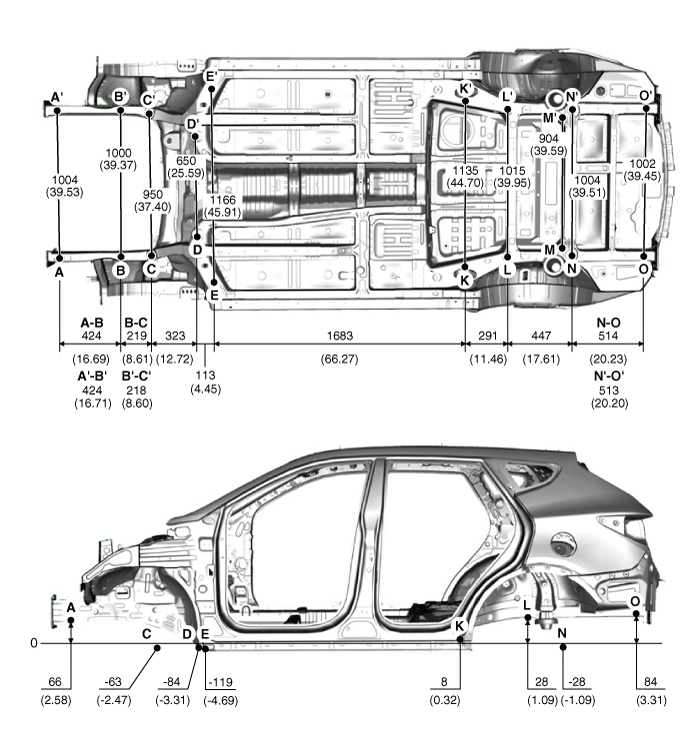

| Projected Dimensions |
|
* These dimensions indicated in this figure are actual-measurement
dimensions. [ Unit : mm (inch) ] |

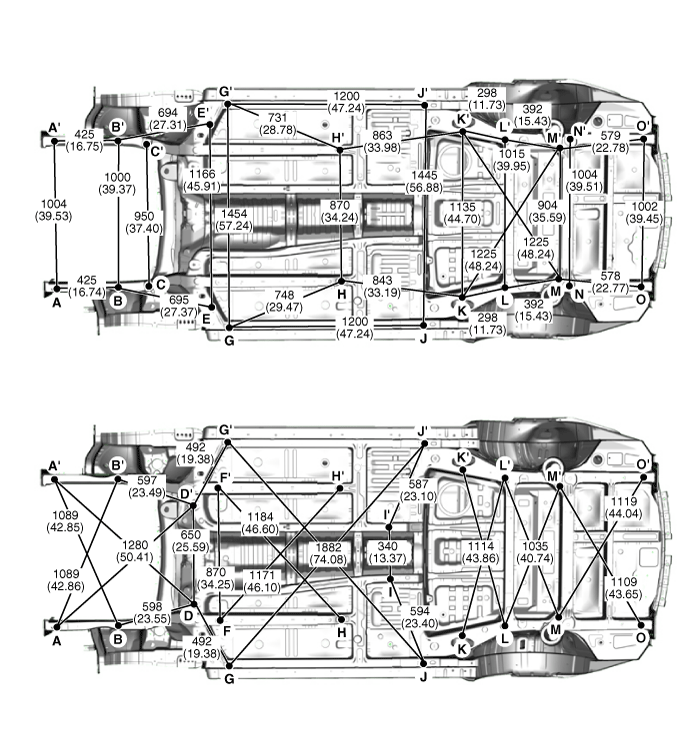

| Actual-Measurement Dimensions |
|
* These dimensions indicated in this figure are actual-measurement
dimensions. [ Unit : mm (inch) ] |
|
|
|
|
|
Front side member tooling hole (Ø25) |
Front side member tooling hole (Ø25) |
Side cover mounting hole (B/B': Ø9/Ø11) |
|
|
|
|
|
Front sub frame mounting bolt |
Front sub frame mounting hole (Ø18) |
Floor under cover mounting hole (Ø6.6) |
|
|
|
|
|
Front sub frame mounting hole (Ø11) |
Floor under cover mounting hole (Ø10) |
Center floor side member tooling hole (Ø8) |
|
|
|
|
|
Center floor side member tooling hole (Ø6.6) |
Center floor rear member tooling hole (Ø10) |
Center floor rear member tooling hole (Ø10) |
|
|
|
|
|
Side sill inner panel tooling hole (Ø9) |
Rear trailing arm mounting hole (Ø19) |
Rear sub frame mounting hole (Ø22) |
|
|
|
|
|
Rear floor cross member extension tooling hole (Ø7) |
Rear sub frame mounting bolt |
Rear floor side member tooling hole (Ø13) |
