Hyundai Santa Fe: Rear Differential Carrier. Components and Components Location - Differential Carrier Assembly - Driveshaft and axleHyundai Santa Fe: Rear Differential Carrier. Components and Components Location

Hyundai Santa Fe DM 2013-2018 Service Manual / Driveshaft and axle / Differential Carrier Assembly / Rear Differential Carrier. Components and Components Location

Component

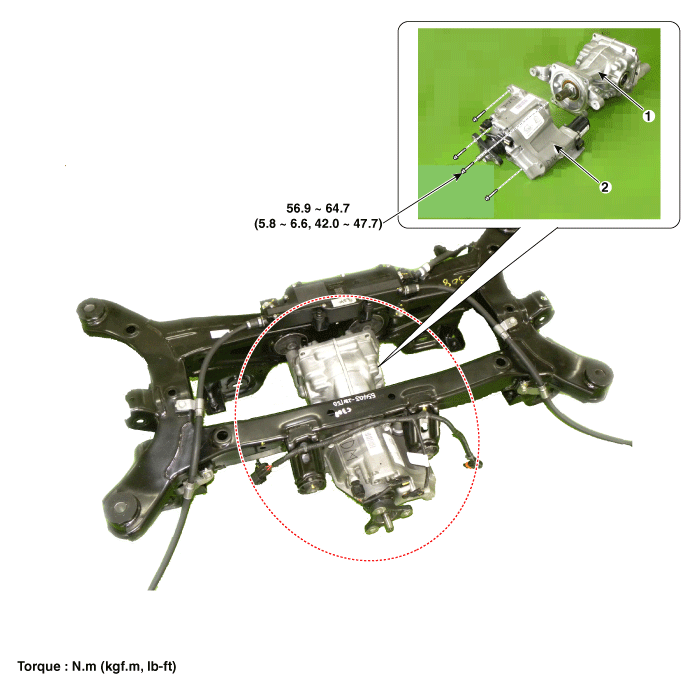

1. Rear Differential Carrier
 2. Coupling Assembly

Differential Carrier Assembly
...

Rear Differential Carrier. Repair procedures
Removal 1. Remove the rear wheel and tire (A) from rear hub. Tightening torque: 88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft) Be careful not to damage to the hub bolts when removing the front ...
