Hyundai Santa Fe: Rear Driveshaft. Components and Components Location - Rear Driveshaft Assembly - Driveshaft and axleHyundai Santa Fe: Rear Driveshaft. Components and Components Location

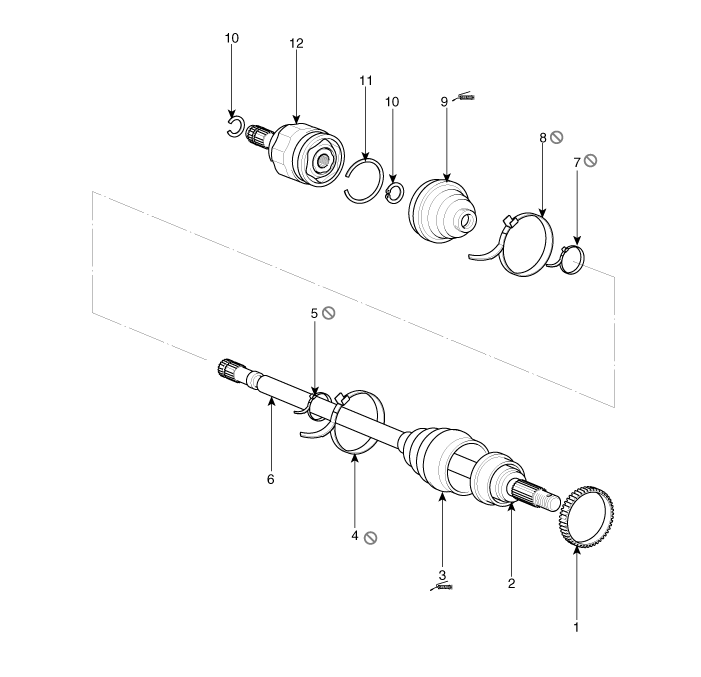

Components

1. Tone wheel
2. BJ joint
3. BJ boot
4. BJ boot big part band
5. BJ boot small part band
6. Shaft
7. TJ boot small part band
8. TJ boot big part band
9. TJ boot
10. Snap ring
11. Circlip
12. TJ assembly


Rear Driveshaft. Repair procedures
Removal 1. Remove the rear wheel and tire (A) from rear hub. Tightening torque: 88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft) Be careful not to damage to the hub bolts when removing the front ...
