Hyundai Santa Fe (DM): Rear Seat Belt Buckle. Components and Components Location
Component Location

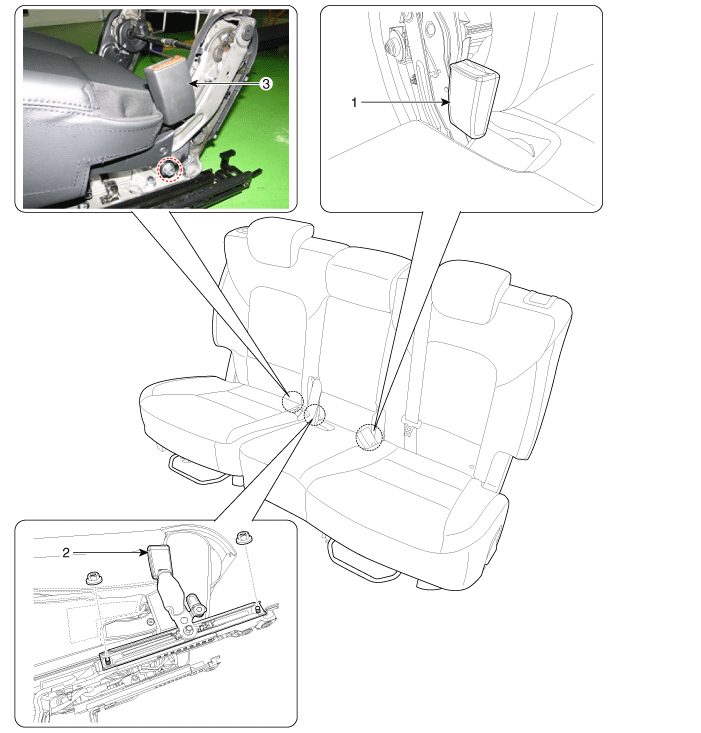

| [Second row seat belt buckle] |
|
1. Second row seat belt buckle [LH] 2. Second row center seat belt buckle |
3. Second row seat belt buckle [RH] |

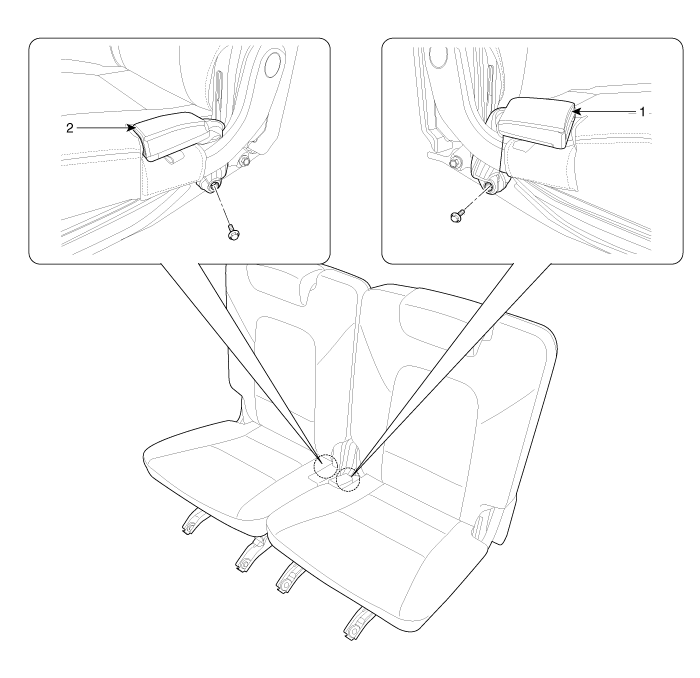

| [Third row seat belt buckle] |
|
1. Third row seat belt buckle [LH] |
2. Third row seat belt buckle [RH] |
