Hyundai Santa Fe: Rear Seat Cushion Cover. Components and Components Location - Rear Seat - Body (Interior and Exterior)Hyundai Santa Fe: Rear Seat Cushion Cover. Components and Components Location

Hyundai Santa Fe DM 2013-2018 Service Manual / Body (Interior and Exterior) / Rear Seat / Rear Seat Cushion Cover. Components and Components Location

Component Location

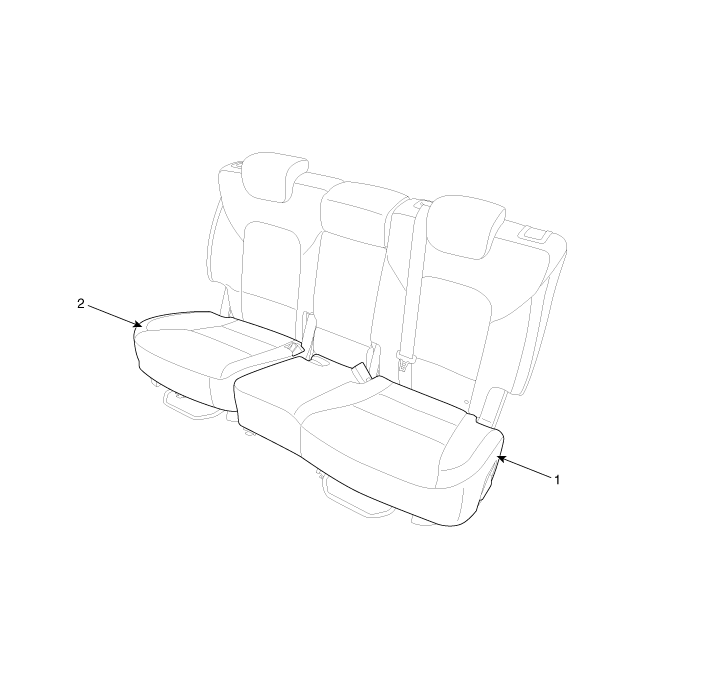

[Second row seat assembly]

1. Rear seat cushion cover [LH]
 2. Rear seat cushion cover [RH]

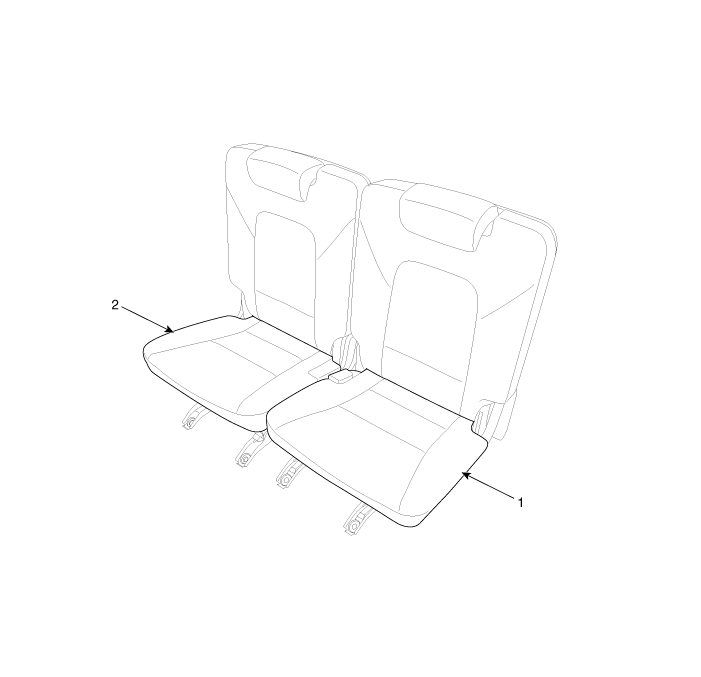

[Third row seat assembly]

1. Rear seat cushion cover [LH]
 2. Rear seat cushion cover [RH]
