Hyundai Santa Fe: Repair procedures
Adjustment
| 1. |

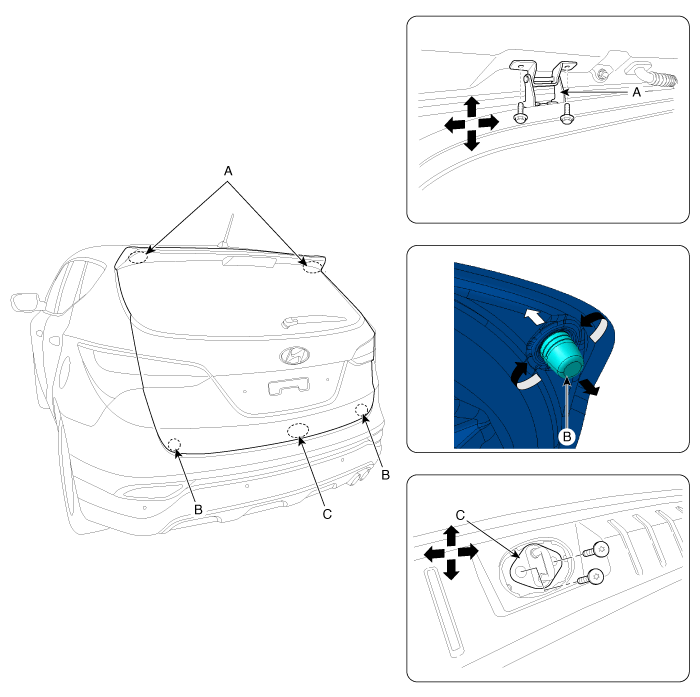

After loosening the tail gate hinge (A) mounting bolt, adjust
the tail gate by moving it up or down, or right or left.
|
| 2. |
Adjust the tail gate height by turning the tail gate overslam
bumpers (B).
|
| 3. |
After loosening the tail gate striker (C) mounting bolts, adjust
the tail gate striker by moving it up or down, or right or left.
|
