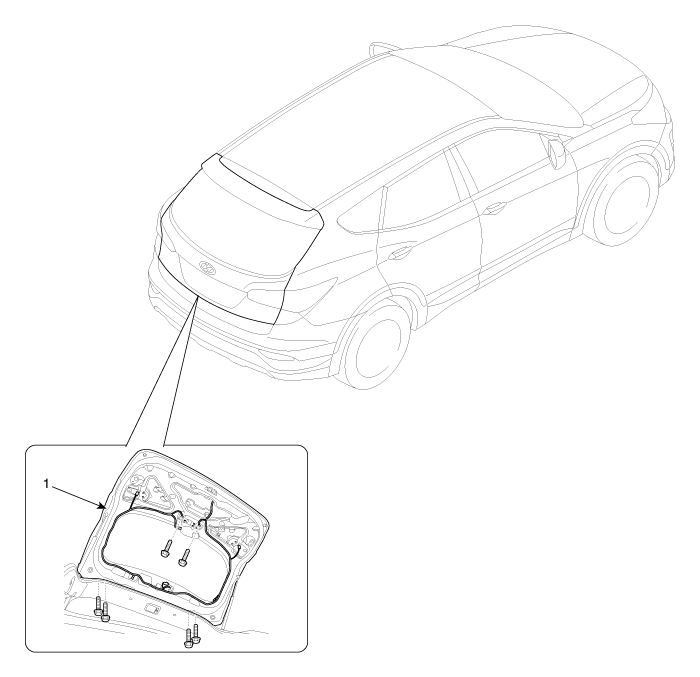

Component Location

1. Tail gate assembly


Repair procedures
Adjustment 1. After loosening the tail gate hinge (A) mounting bolt, adjust the tail gate by moving it up or down, or right or left. 2. Adjust the tail gate height by turning the tail gate overslam bumpers ...

Tail Gate Assembly. Repair procedures
Replacement • Wear gloves to protect hands from injury. • When removing and installing the tail gate, an assistant is necessary. 1. Remove the tail gate trim. 2. Remove the tail gate upper trim. 3. ...
