Hyundai Santa Fe: Repair procedures - Trunk Trim - Body (Interior and Exterior)Hyundai Santa Fe: Repair procedures

Replacement

•
Put on gloves to protect your hands.
•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the third row seat.
2.
Remove the rear door scuff trim.
3.
Remove the cargo screen (A).
4.
Remove the luggage covering met (B).
5.
Remove the luggage floor front board (C).
6.
Remove the luggage tray board (D).
7.
After loosening the mounting screws, then remove the luggage floor box (E).
8.
Remove the rear transverse trim (F).
9.
After loosening the mounting screws, then remove the luggage side trim (G).
10.
Install in the reverse order of removal.
•
Replace any damaged clips.

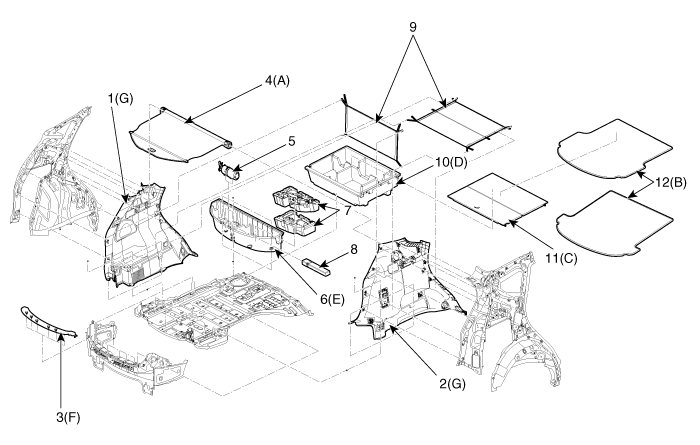

1. Luggage side trim [LH]
2. Luggage side trim [RH]
3. Rear transverse trim
4. Cargo screen
5. Fire extinguisher
6. Luggage floor box
 7. Jack tool set
8. Triangle reflector
9. Luggage net
10. Luggage tray board
11. Luggage floor front board
12. Luggage covering met
