Replacement

•
Put on gloves to protect your hands.
•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the console front complete assembly.
2.
Remove the front seat assembly.
3.
Remove the second row seat.
4.
Remove the third row seat.
5.
Remove the cowl side trim.
6.
Remove the center pillar lower trim.
7.
Remove the luggage side trim.
8.
Remove the floor carpet assembly (A).
9.
Remove the tunnel pad (B).
10.
Install in the reverse order of removal.
•
Replace any damaged clips.

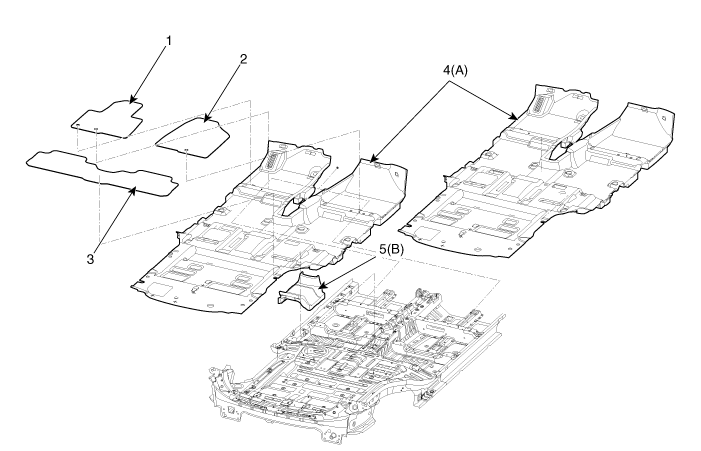

1. Front car mat complete [LH]
2. Front car mat complete [RH]
3. Rear car mat complete
 4. Floor carpet assembly
5. Tunnel pad
