Hyundai Santa Fe (DM): Crash Pad Side Cover. Repair procedures - Crash Pad - Body (Interior and Exterior)Hyundai Santa Fe (DM): Crash Pad Side Cover. Repair procedures

Replacement

•
Put on gloves to protect your hands.
•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.

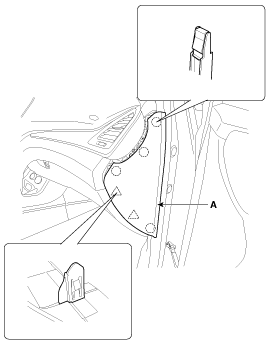

Using a screwdriver or remover, remove the crash pad side cover (A).
[LH]

[RH]

2.
Install in the reverse order of removal.
•
Replace any damaged clips.
