Hyundai Santa Fe: Seat Belt Buckle Switch (BS). Components and Components Location - SRSCM - RestraintHyundai Santa Fe: Seat Belt Buckle Switch (BS). Components and Components Location

Hyundai Santa Fe DM 2013-2018 Service Manual / Restraint / SRSCM / Seat Belt Buckle Switch (BS). Components and Components Location

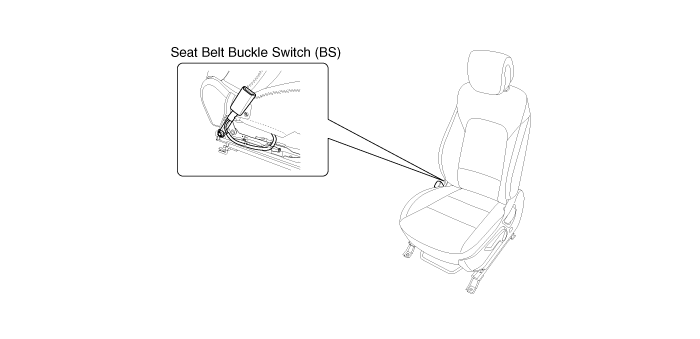

Components


Seat Belt Buckle Switch (BS). Description and Operation
Description The SRSCM shall monitor the status of the driver and front passenger seat belt buckle. The SRSCM provides one pin each for the driver and front passenger seat belt buckle status input. The ...

Seat Belt Buckle Switch (BS). Repair procedures
Removal 1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work. 2. Remove the front seat assembly. 3. Loosen the seat belt buckle mounting bolt and remove the ...
