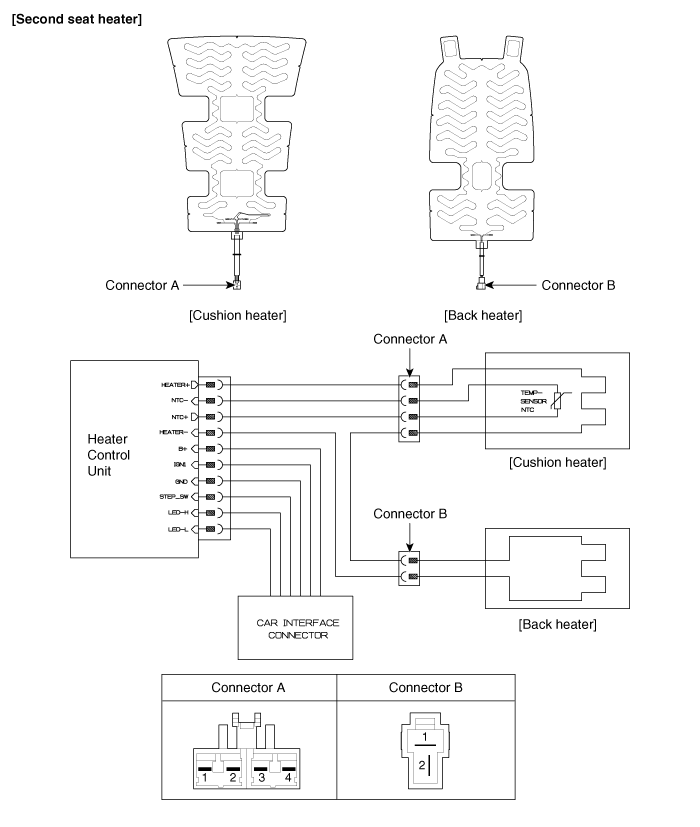

Circuit Diagram

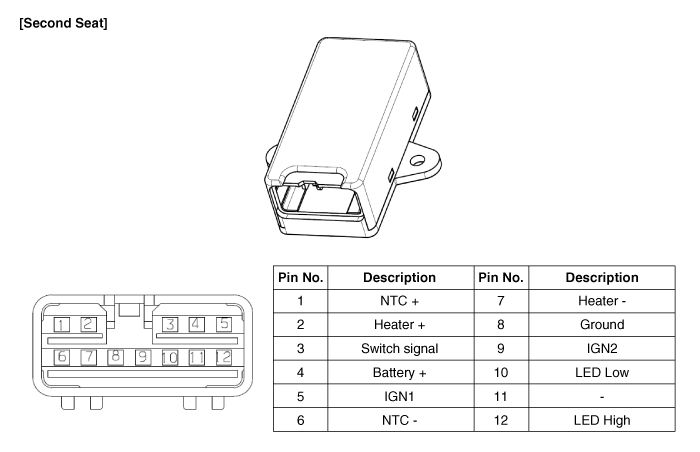

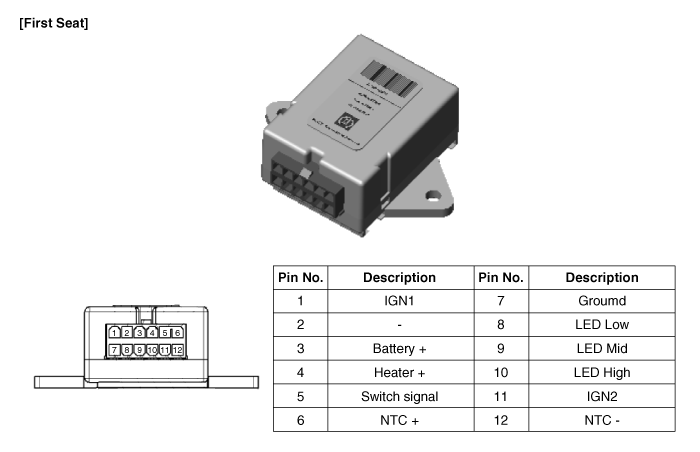

Seat Heater (Non-Air Ventilation). Components and Components Location
Components ...

Seat Heater (Non-Air Ventilation). Repair procedures
Inspection Front Seat 1. Check for continuity and measure the resistance between terminals. No. Description No. Description 1 Heater cushion + 4 Heater back + 2 NTC + 5 - 3 Ground 6 NTC - Standard value ...
