Hyundai Santa Fe: Tail Gate Trim. Components and Components Location - Tail Gate - Body (Interior and Exterior)Hyundai Santa Fe: Tail Gate Trim. Components and Components Location

Hyundai Santa Fe DM 2013-2018 Service Manual / Body (Interior and Exterior) / Tail Gate / Tail Gate Trim. Components and Components Location

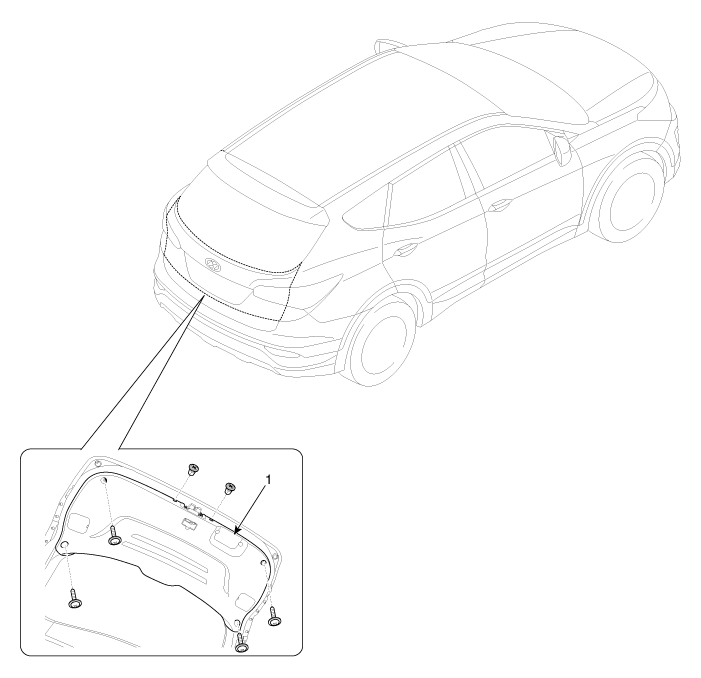

Component Location

1. Tail gate trim


Tail Gate Assembly. Repair procedures
Replacement • Wear gloves to protect hands from injury. • When removing and installing the tail gate, an assistant is necessary. 1. Remove the tail gate trim. 2. Remove the tail gate upper trim. 3. ...

Tail Gate Trim. Repair procedures
Replacement [Tail gate trim] • Put on gloves to protect your hands. • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent ...
