Hyundai Santa Fe (DM): Body Panel Gaps. Body Repair - Body Dimensions - Body (Interior and Exterior)Hyundai Santa Fe (DM): Body Panel Gaps. Body Repair

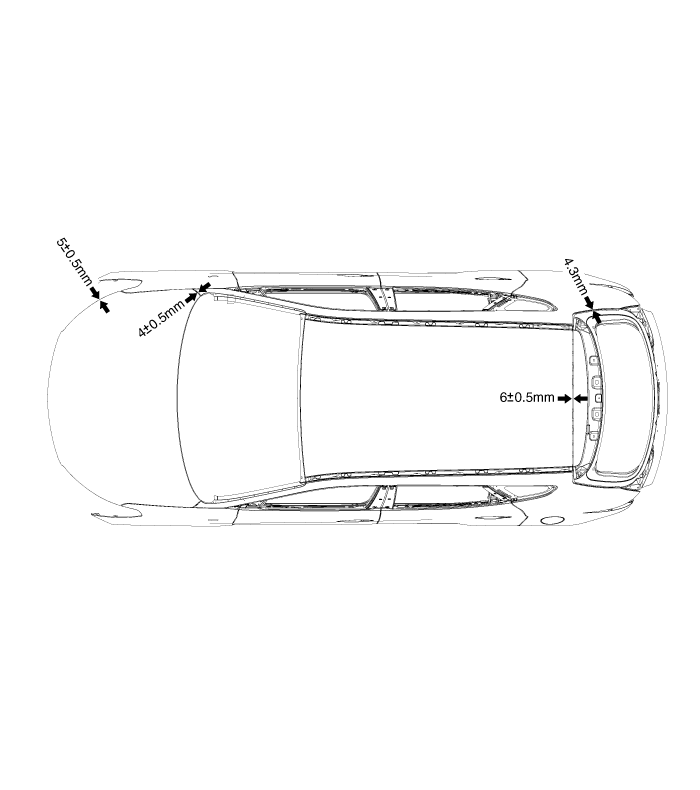

Front & Rear Dimension

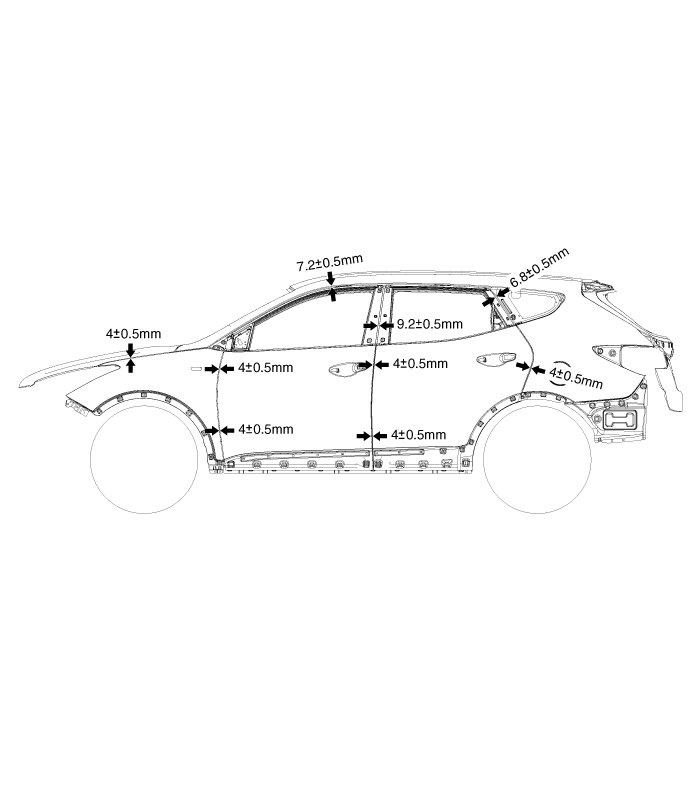

Side Dimension

Side Dimension


Under Body. Body Repair
Under Body (2WD) Projected Dimensions * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] Actual-Measurement Dimensions * These dimensions indicated in this ...

Cross Member. Body Repair
Front Cross Member * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] Rear Cross Member * These dimensions indicated in this figure are actual-measurement ...
