Hyundai Santa Fe (DM): AVN Head Unit. Components and Components

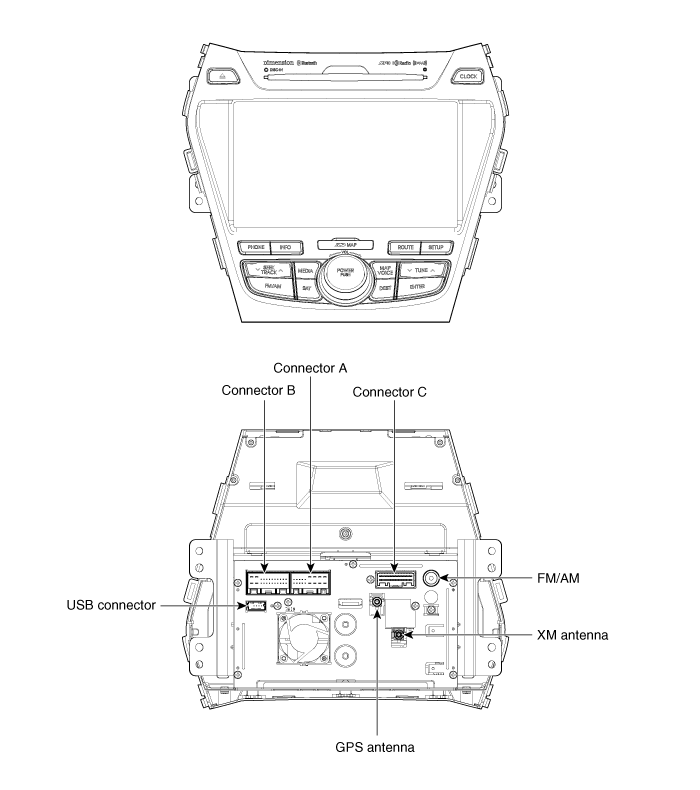

Location

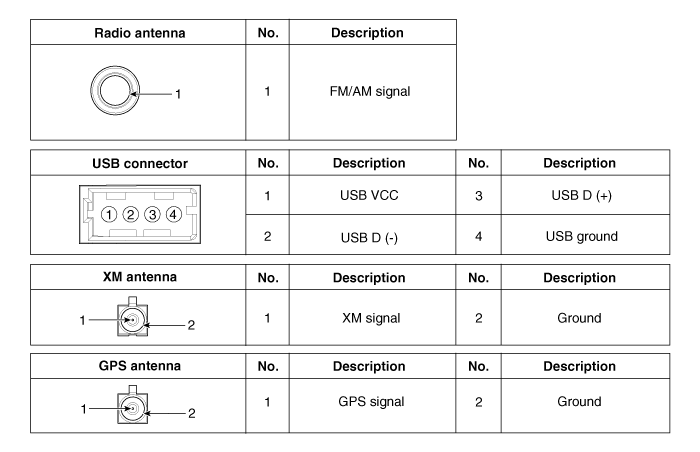

Components
| AVN (A/V & Navigation) Head Unit Connector |
|
No. |
Connector A |
Connector B |
Connector C |
|
1 |
- |
MM CAN High |
- |
|
2 |
Parking V VIDEO |
- (Dimming output) |
- |
|
3 |
Parking V GND |
Parking |
- |
|
4 |
Rear camera shield ground |
Steering wheel remocon |
MTS/TMU ground |
|
5 |
SPDIF ground |
- (Rear remocon) |
RS422 Tx + |
|
6 |
SPDIF (+) |
IGN |
RS422 Tx - |
|
7 |
ALT L |
AUX VIDEO |
RS422 Rx - |
|
8 |
Illumination (+) |
AUX right input |
RS422 Rx + |
|
9 |
R position |
AUX ground |
- (LVDS PDN) |
|
10 |
- |
MIC (+) |
- |
|
11 |
Rear camera power |
ACC (+) |
- |
|
12 |
Navigation voice (-) |
Battery (+) |
Ground |
|
13 |
Navigation voice (+) |
MM CAN Low |
- (LVDS LOCK) |
|
14 |
PGS/ Rear camera |
Auto light |
- (BL ON) |
|
15 |
SPDIF (-) |
P position |
- (TOUCH Rx +) |
|
16 |
Door key unlock |
Vehicle speed |
- (TOUCH Rx -) |
|
17 |
Illumination (-) |
Remocon ground |
Ground |
|
18 |
Antenna remocon power |
- |
- (TOUCH Tx -) |
|
19 |
|
AUX VIDEO ground |
- (TOUCH Tx +) |
|
20 |
AUX detect |
MTS/TMU voice (+) |
|
|
21 |
AUX left input |
MTS/TMU voice (-) |
|
|
22 |
MIC (-) |
- |
|
|
23 |
Power ground |
Ground |
|
|
24 |
Power ground |
- |
