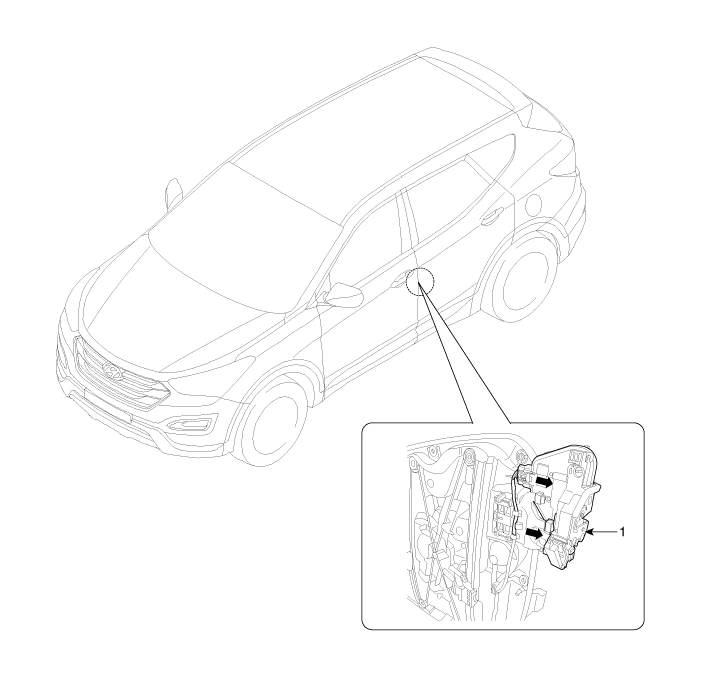

Component Location

1. Front door latch


Front Door Outside Handle. Repair procedures
Replacement 1. Remove the hole plug (B). 2. After loosening the mounting bolt, then remove the front door outside handle cover (A). Tightening torque : 7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft) ...

Front Door Latch. Repair procedures
Replacement 1. Remove the front door module. 2. Remove the front door outside handle base (A) by pushing in the lock pins located in the back. 3. Open the front door outside handle cable cap (A). 4. Remove ...
