Hyundai Santa Fe (DM): Components and Components Location
Components (1)

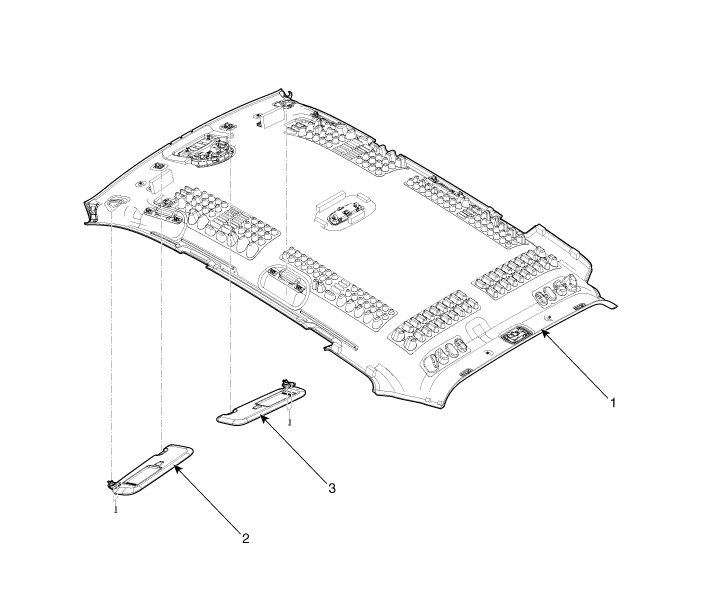

| [General Type] |
|
1. Roof trim 2. Sunvisor [LH] |
3. Sunvisor [RH] |
Components (2)

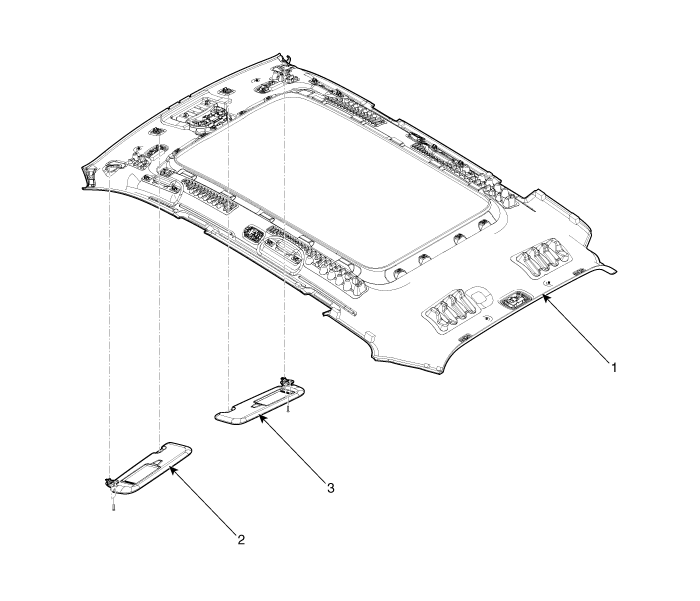

| [Panorama sunroof Type] |
|
1. Roof trim 2. Sunvisor [LH] |
3. Sunvisor [RH] |
