Hyundai Santa Fe: Sunvisor. Components and Components Location

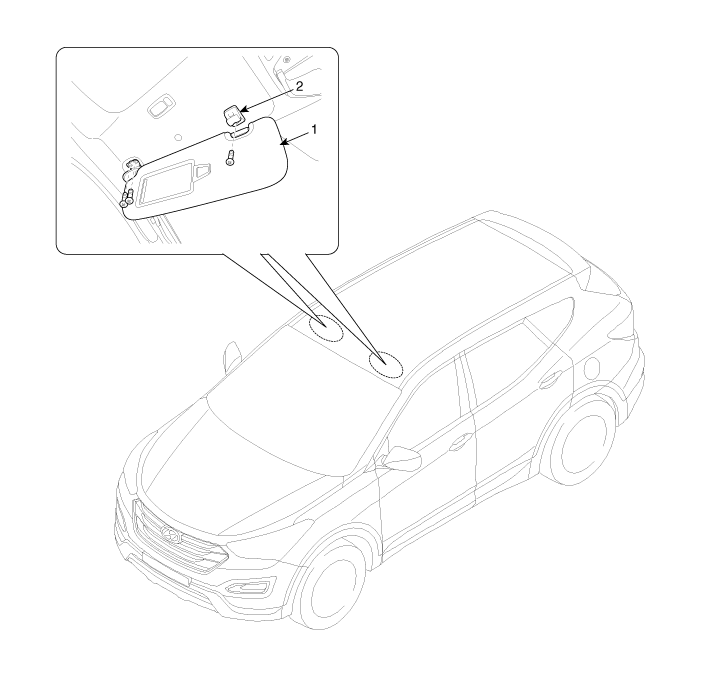

Component Location
|
1. Sunvisor |
2. Retainer |
Components and Components Location
Components (1) [General Type] 1. Roof trim 2. Sunvisor [LH] 3. Sunvisor [RH] Components (2) [Panorama sunroof Type] 1. Roof trim 2. Sunvisor [LH] 3. Sunvisor [RH] ...
Sunvisor. Repair procedures
Replacement • Put on gloves to protect your hands. • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage. • ...
