Hyundai Santa Fe (DM): Fluid. Components and Components Location - Hydraulic System - Automatic Transaxle SystemHyundai Santa Fe (DM): Fluid. Components and Components Location

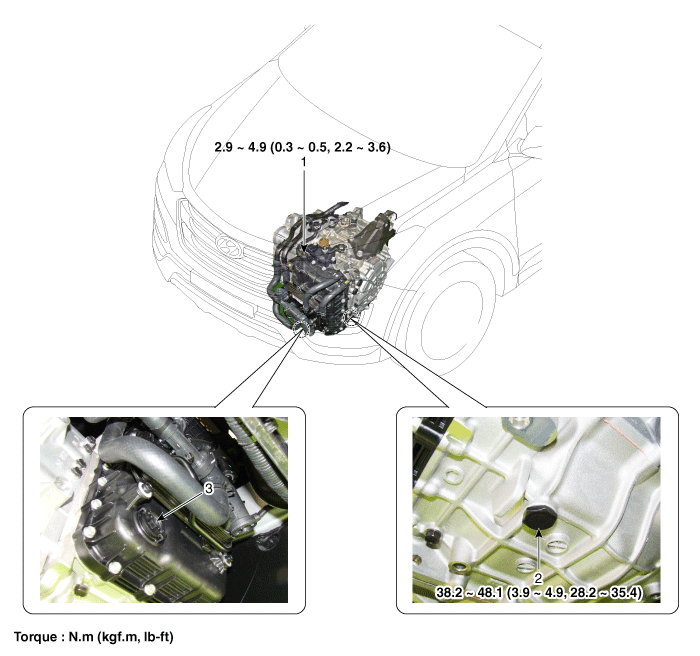

Component Location

1. ATF Injection hole(eyebolt)
2. Oil level plug
3. Oil drain plug
