Hyundai Santa Fe: Oil Pump. Components and Components Location - Hydraulic System - Automatic Transaxle SystemHyundai Santa Fe: Oil Pump. Components and Components Location

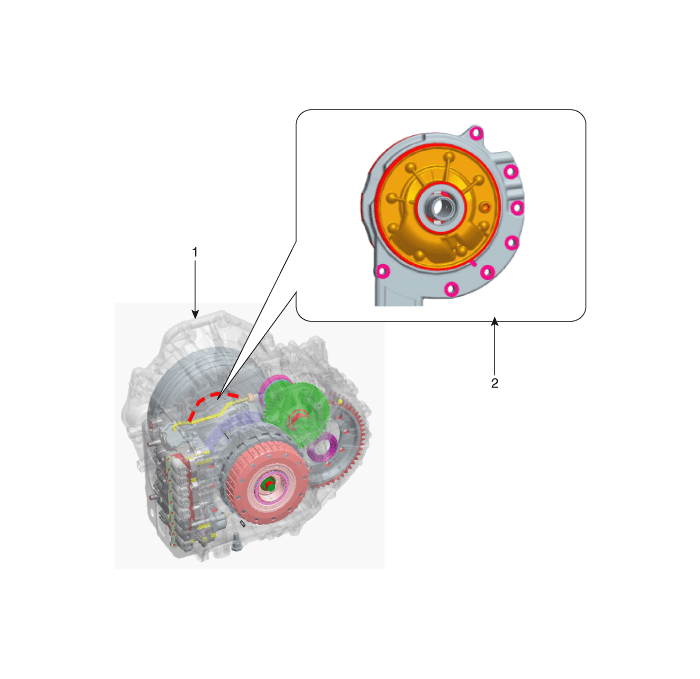

Component Location

1. Automatic transaxle
2. Oil pump assembly

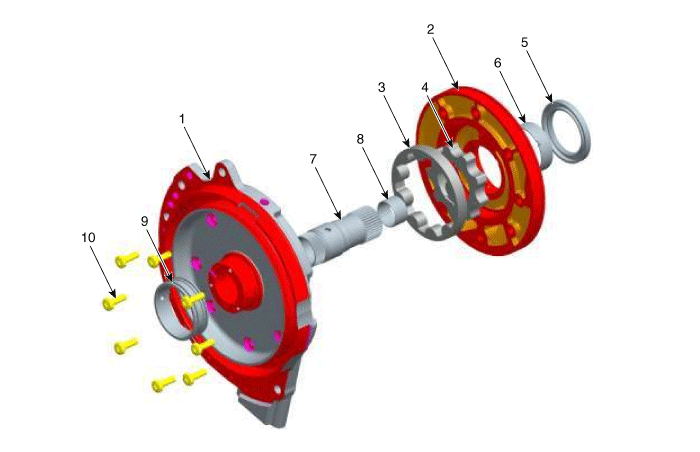

Component

1. Reaction shaft support assembly
2. Oil pump housing
3. Driven gear
4. Drive gear
5. Oil seal
6. Bush-Housing
7. Reaction shaft
8. Bush- Reaction shaft
9. Sleeve
10. Flange bolt

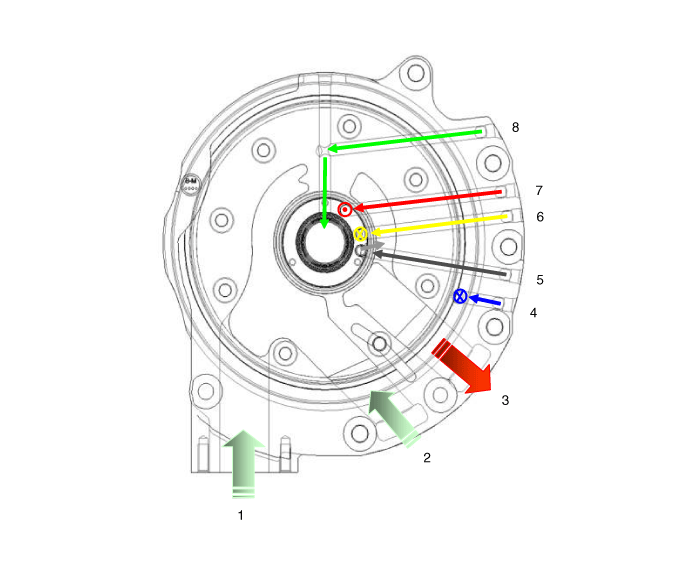

Oil pump operation flow

1. Inhale(Oil filter)
2. Inhale(Valve body)
3. Outlet
4. 26/B operation pressure
5. 35R/C operation pressure
6. Lubrication
7. Lock up clutch operation pressure
8. Lock up clutch cancellation
