Hyundai Santa Fe (DM): Power Window Switch. Components and Components Location - Power Windows - Body Electrical SystemHyundai Santa Fe (DM): Power Window Switch. Components and Components Location

Hyundai Santa Fe DM 2013-2018 Service Manual / Body Electrical System / Power Windows / Power Window Switch. Components and Components Location

Components

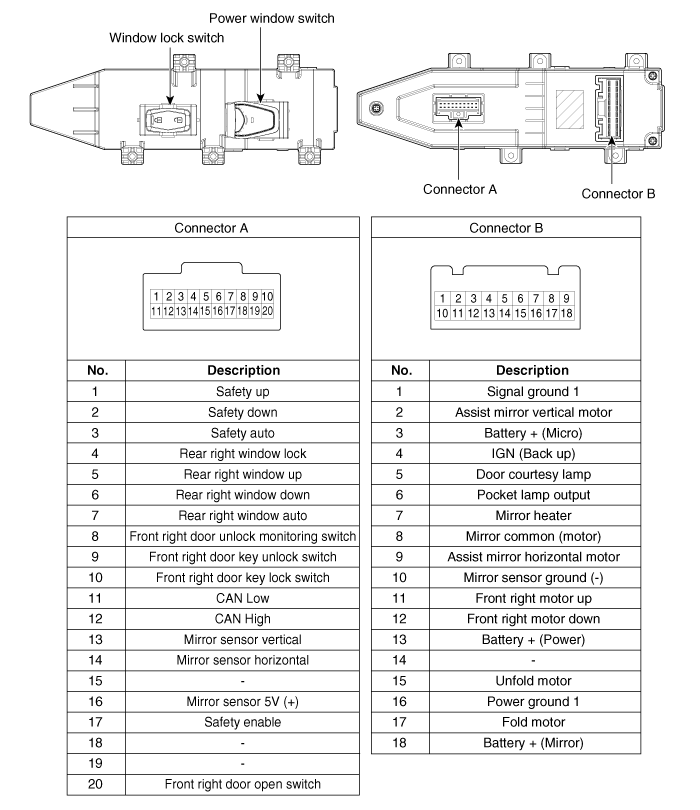

Driver Power Window Switch

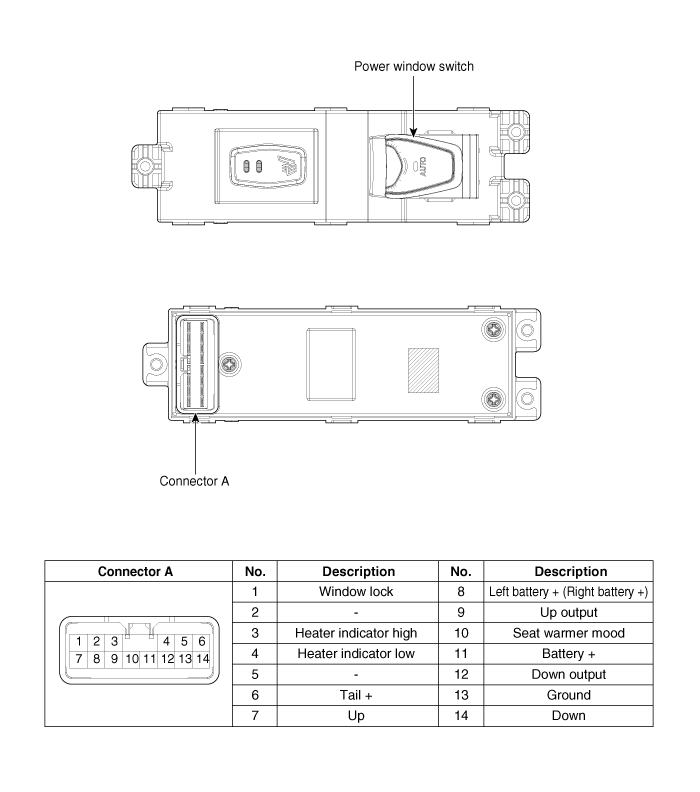

Assist Power Window Switch

Assist Power Window Switch

Rear Power Window Switch

Rear Power Window Switch
