Hyundai Santa Fe (DM): Rear Door Trim. Repair procedures - Rear Door - Body (Interior and Exterior)Hyundai Santa Fe (DM): Rear Door Trim. Repair procedures

Replacement

•
Put on gloves to protect your hands.
•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Be careful not to scratch the door trim and other parts.
1.

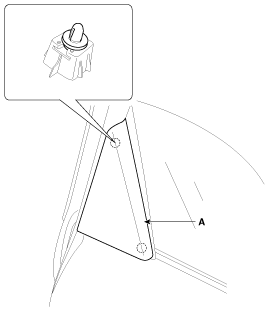

Using a screwdriver or remover, remove the rear door delta inner cover (A).
2.
Remove the rear door pull cap (A).
3.
After loosening the mounting screws, then remove the rear door trim (A).
4.
Remove the rear door inside handle cage (A).
5.
Disconnect the power window switch connector (A).
6.
Install in the reverse order of removal.
•
Make sure the connector is connected properly.
•
Make sure the door locks/unlocks and opens/closes properly.
•
Replace any damaged clips.

Rear Door Trim. Components and Components Location
Component Location 1. Rear door trim ...

Rear Door Inside Handle. Repair procedures
Replacement 1. Remove the rear door trim. 2. After loosening the mounting screws, then remove the rear door inside handle (A). 3. Install in the reverse order of removal. • Make sure the door locks/unlocks ...
