Hyundai Santa Fe: Rear Seat Frame Assembly. Components and Components Location - Rear Seat - Body (Interior and Exterior)Hyundai Santa Fe: Rear Seat Frame Assembly. Components and Components Location

Component Location

[Second row seat assembly]

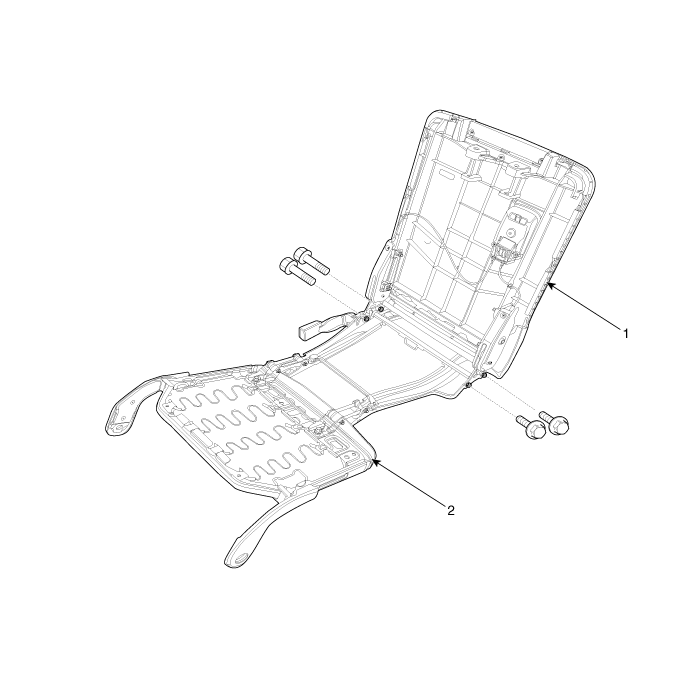

(LH)

1. Rear seat back frame assembly
2. Rear seat cushion frame assembly

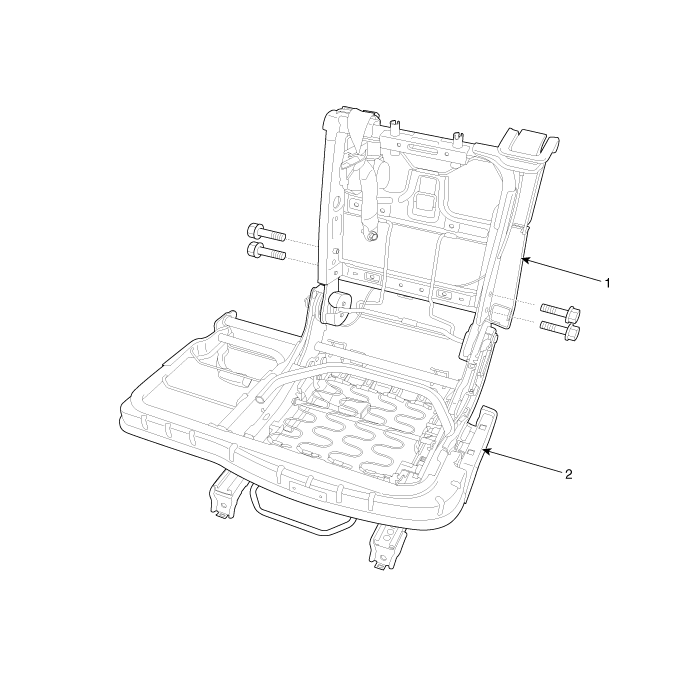

(RH)

1. Rear seat back frame assembly
2. Rear seat cushion frame assembly

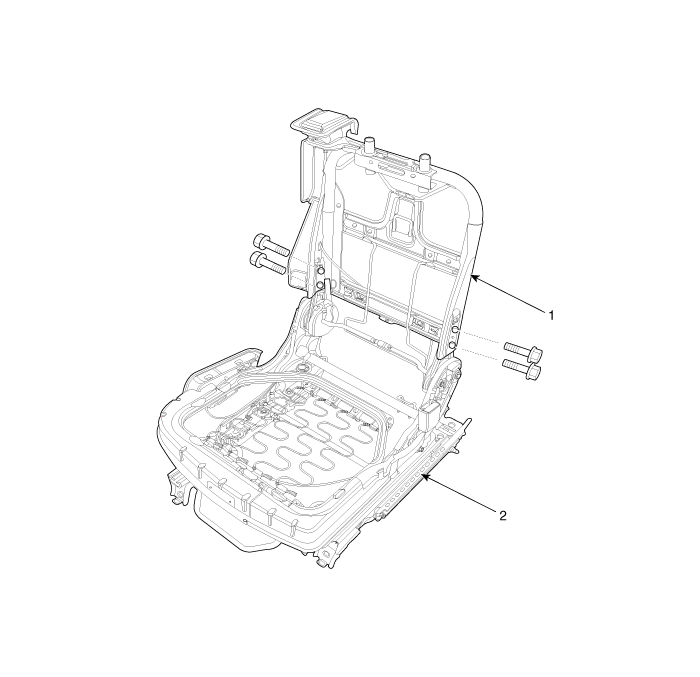

[Third row seat assembly]

1. Rear seat back frame assembly
2. Rear seat cushion frame assembly


Rear Seat Latch. Repair procedures
Replacement [Second row seat assembly] • Put on gloves to protect your hands. • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, ...

Rear Seat Frame Assembly. Repair procedures
Replacement [Second row seat assembly] (LH) • Put on gloves to protect your hands. • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related ...
