Hyundai Santa Fe: Rear Wheel Speed Sensor. Components and Components Location - ESC(Electronic Stability Control) System - Brake SystemHyundai Santa Fe: Rear Wheel Speed Sensor. Components and Components Location

Hyundai Santa Fe DM 2013-2018 Service Manual / Brake System / ESC(Electronic Stability Control) System / Rear Wheel Speed Sensor. Components and Components Location

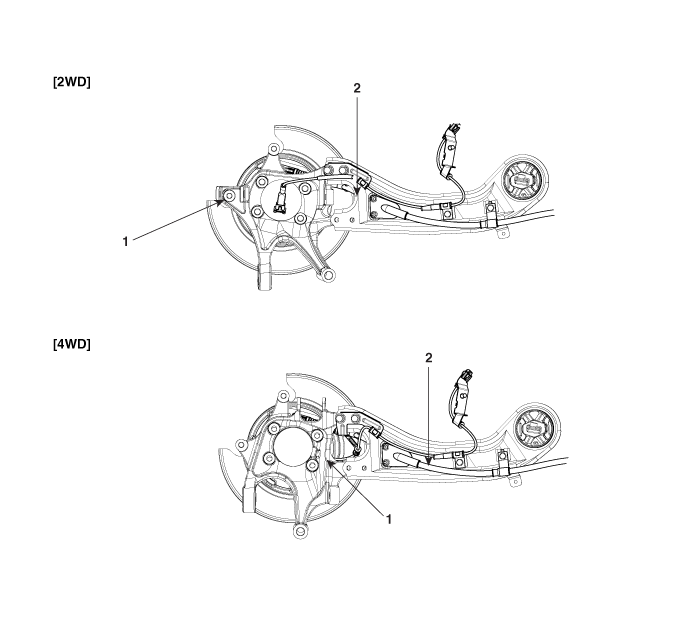

Components

1. Rear wheel speed sensor
2. Rear wheel speed sensor cable
