Hyundai Santa Fe: Relay Box (Engine Compartment). Components and Components Location - Fuses And Relays - Body Electrical SystemHyundai Santa Fe: Relay Box (Engine Compartment). Components and Components Location

Hyundai Santa Fe DM 2013-2018 Service Manual / Body Electrical System / Fuses And Relays / Relay Box (Engine Compartment). Components and Components Location

Component Location


Components and Components Location

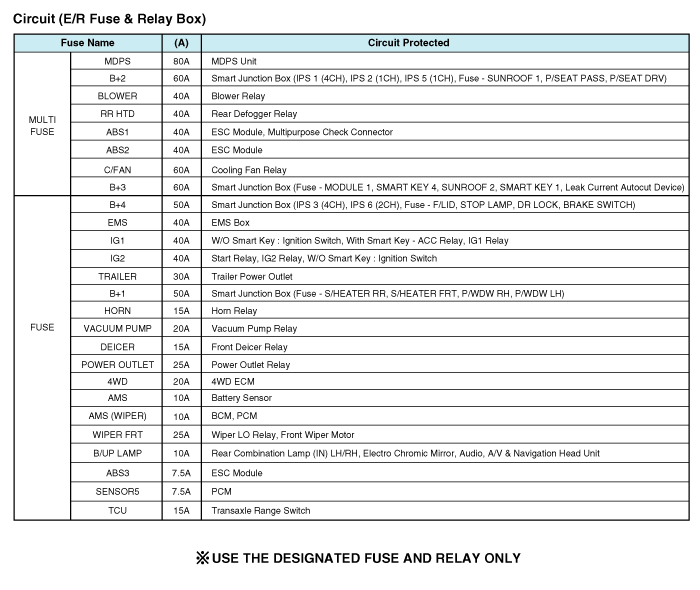

Component Location 1. Power outlet relay 2. Start relay 3. Front deicer relay 4. Blower relay 5. Wiper relay (Low) 6. ACC relay 7. IG1 relay 8. IG2 relay 9. Cooling fan relay 10. Wiper relay (High) 11. ...

Relay Box (Engine Compartment). Repair procedures
Inspection 1. Disconnect the negative (-) battery terminal. 2. Pull out the relay from the engine compartment relay box. Power Relay (Type A) Check for continuity between the terminals. A : Power outlet ...
