Hyundai Santa Fe: Smart Key Unit. Schematic Diagrams - Smart Key System - Body Electrical SystemHyundai Santa Fe: Smart Key Unit. Schematic Diagrams

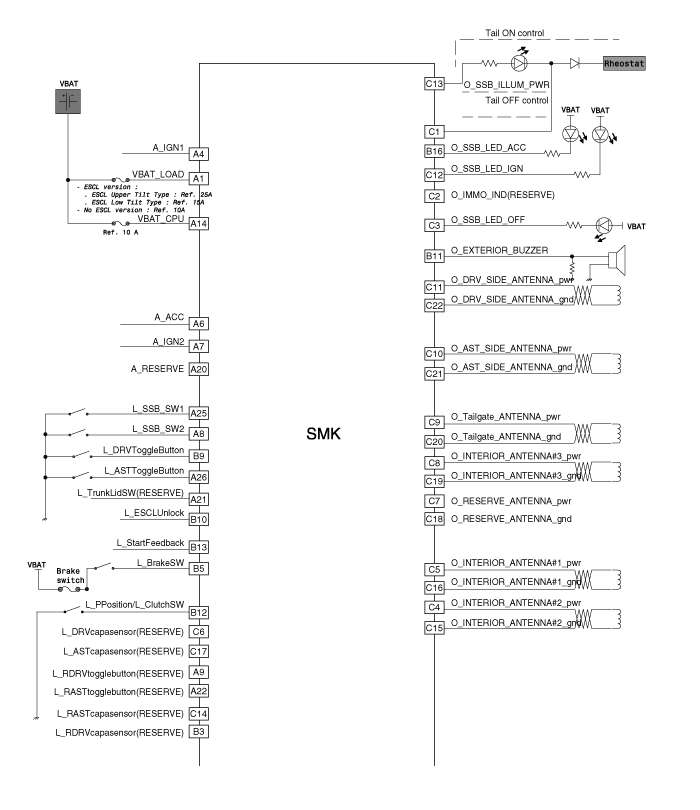

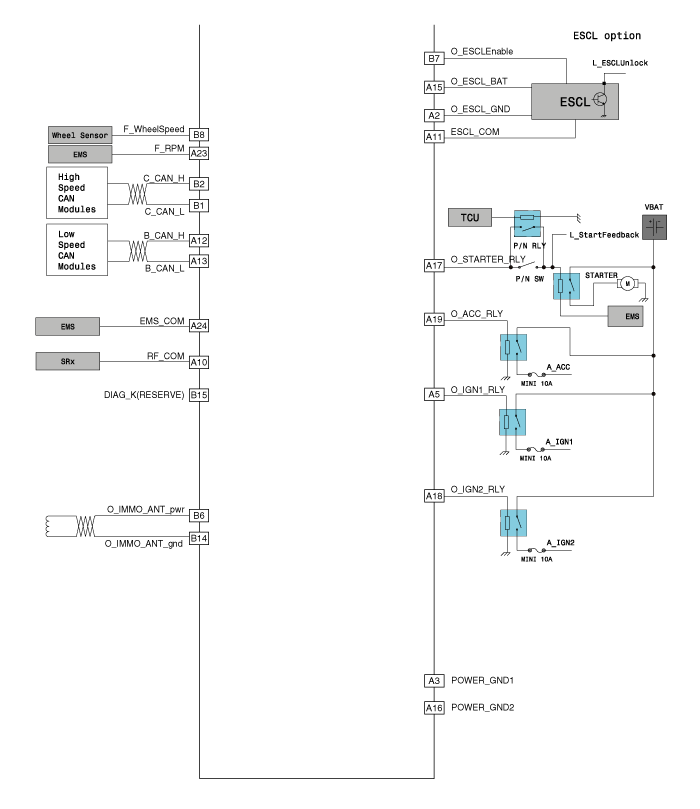

Circuit Diagram


Smart Key Unit. Components and Components Location
Components (1) Connector Pin Information No. Connector A Connector B Connector C 1 V_BAT load C_CAN Low SSB illumination ground 2 - C_CAN High - 3 Power ground1 - SSB LED OFF 4 IGN1 - Interior antenna ...

Smart Key Unit. Repair procedures
Removal Smart Key Unit 1. Disconnect the negative (-) battery terminal. 2. Remove the driver crash pad lower panel. 3. Remove the smart key unit (B) after loosening the mounting bolts(2EA) and disconnecting ...
