Hyundai Santa Fe: Start/Stop Button. Components and Components Location - Button Engine Start System - Body Electrical SystemHyundai Santa Fe: Start/Stop Button. Components and Components Location

Hyundai Santa Fe DM 2013-2018 Service Manual / Body Electrical System / Button Engine Start System / Start/Stop Button. Components and Components Location

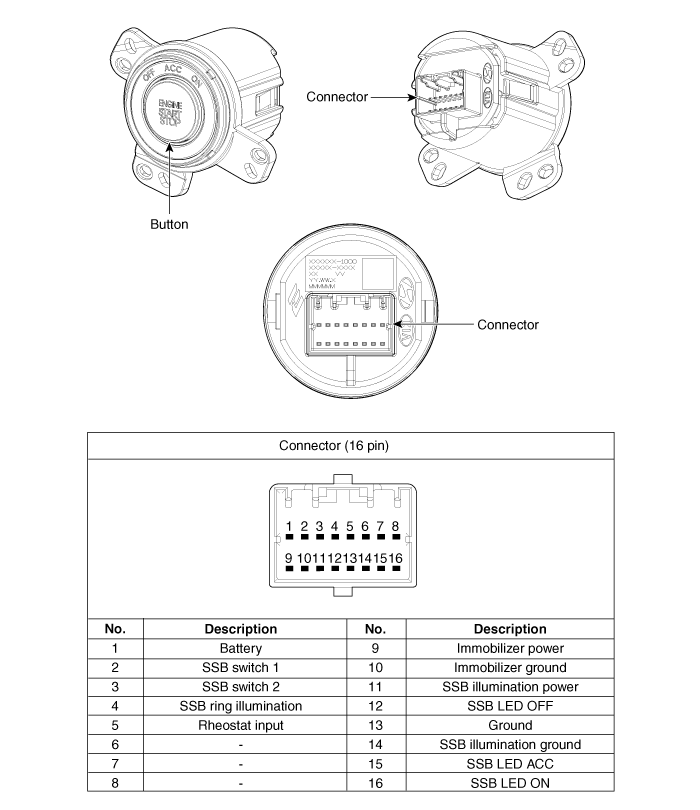

Component


Description and Operation
Description System Overview The System offers the following features: - Human / machine interface through a 1-stage button, for terminal switching and engine start. - Control of external relays for ACC ...

Start/Stop Button. Repair procedures
Removal 1. Disconnect the negative(-) battery terminal. 2. Remove the driver crash pad lower panel. 3. Disconnect the start/stop button connector (B) after removing the center fascia garnish (A). 4. Remove ...
