Hyundai Santa Fe: Torque Converter Control Solenoid Valve (T/CON_VFS). Schematic Diagrams - Automatic Transaxle Control System - Automatic Transaxle SystemHyundai Santa Fe: Torque Converter Control Solenoid Valve (T/CON_VFS). Schematic Diagrams

Hyundai Santa Fe DM 2013-2018 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Torque Converter Control Solenoid Valve (T/CON_VFS). Schematic Diagrams

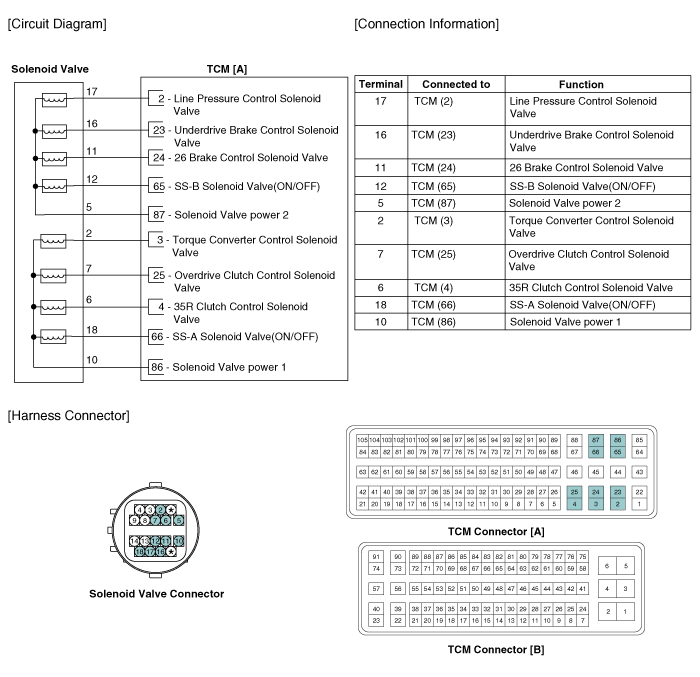

Circuit Diagram


Torque Converter Control Solenoid Valve (T/CON_VFS). Specifications
Specifications Direct control VFS[T/CON] ▷ Control type : Normal low type Control Pressure kpa (kgf/cm², psi) 9.81~500.14 (0.1~5.1,1.42~72.54) Current value(mA) 50~850 Internal resistance(Ω) ...

Torque Converter Control Solenoid Valve (T/CON_VFS). Repair procedures
Inspection 1. Turn ignition switch OFF. 2. Remove the air duct. 3. Disconnect the solenoid valve connector(A). 4. Measure resistance between sensor signal terminal and sensor ground terminal. 5. Check ...
