Hyundai Santa Fe: Troubleshooting - Starting System - Engine Electrical SystemHyundai Santa Fe: Troubleshooting

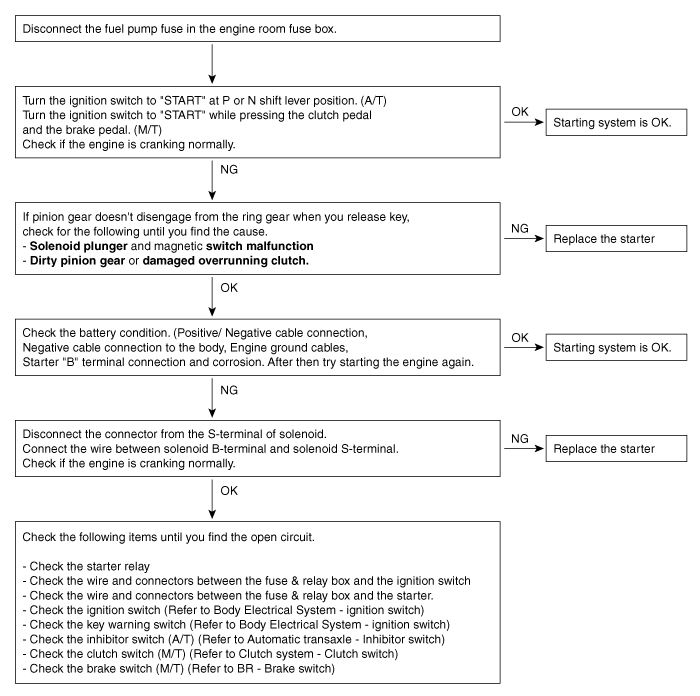

Troubleshooting

•
The battery must be in good condition and fully charged for this troubleshooting.
