Hyundai Santa Fe: 4WD ECU. Description and Operation - 4WD Control System - 4 Wheel Drive (4WD) SystemHyundai Santa Fe: 4WD ECU. Description and Operation

Description

4WD ECU processes signals from various sensors and determines the current road and driving conditions. The ECU then utilizes this information to implement precision control over the 4WD coupling's multi-plate clutch and variably adjust the amount of torque delivered tothe rear wheels.


4WD ECU. Components and Components Location
Components Location 1. 4WD ECU ...

4WD ECU. Flow Diagram

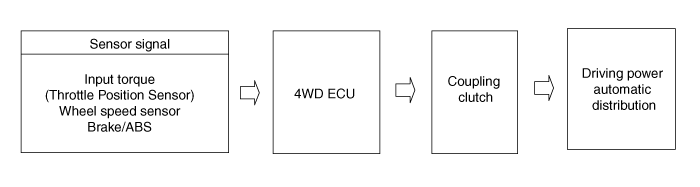

Power Flow Diagram 4WD ECU Input&Output Diagram ...
