Hyundai Santa Fe: 4WD ECU. Flow Diagram - 4WD Control System - 4 Wheel Drive (4WD) SystemHyundai Santa Fe: 4WD ECU. Flow Diagram

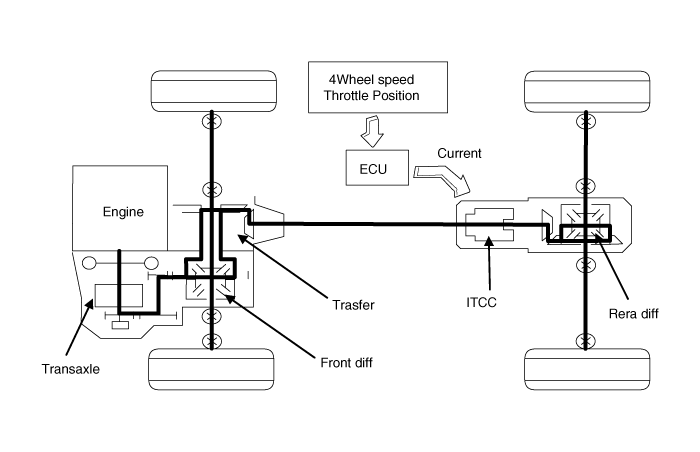

Power Flow Diagram

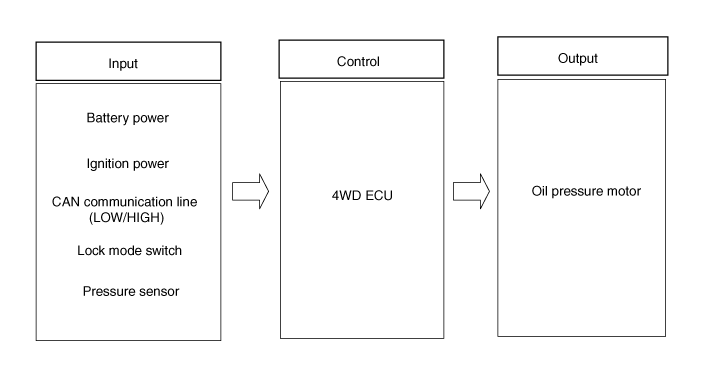

4WD ECU Input&Output Diagram

4WD ECU Input&Output Diagram


4WD ECU. Description and Operation
Description 4WD ECU processes signals from various sensors and determines the current road and driving conditions. The ECU then utilizes this information to implement precision control over the 4WD coupling's ...

4WD ECU. Schematic Diagrams
Circuit Diagram 4WD ECU Connector Pin Function 1 CAN communication line (Low) 2 CAN communication line (High) 3 - 4 Pressure sensor signal(+) 5 - 6 Lock mode switch 7 Oil pressure motor B 8 Oil pressure ...
