Hyundai Santa Fe: BJ Boot. Components and Components Location
Components
|

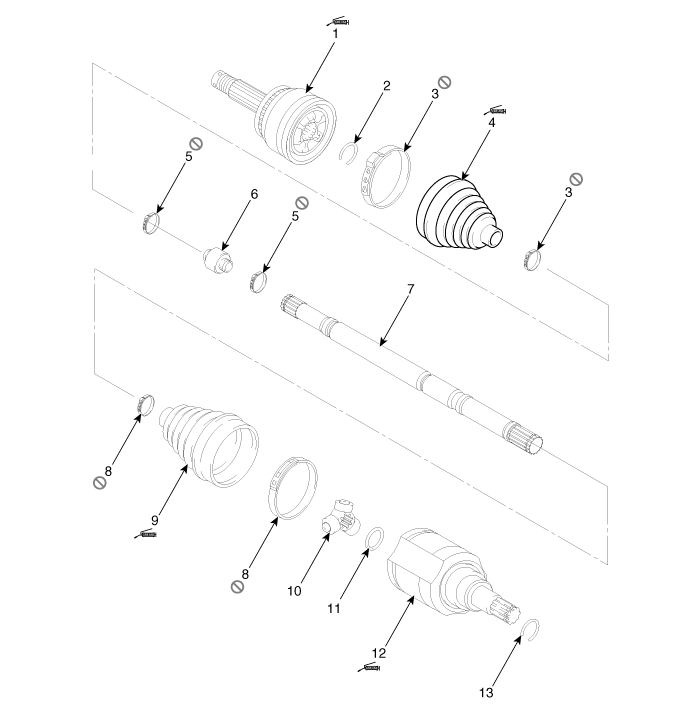

1. BJ assembly 2. BJ circlip 3. BJ boot band 4. BJ boot |
5. Dynamic damper band 6. Dynamic damper 7. Shaft 8. TJ boot band |
9. TJ boot 10. Spider assembly 11. Retainer ring 12. TJ housing |
13. Housing circlip |
Dynamic Damper. Repair procedures
Removal 1. Remove the front driveshaft. 2. Remove the TJ joint assembly. 3. Remove the remove the both side of band (B) of the dynamic damper (A). 4. Fix the driveshaft (A) with a vice (B) as illustrated. ...
BJ Boot. Repair procedures
Removal 1. Remove the front driveshaft. 2. Remove the TJ joint assembly. 3. Remove the Dynamic damper. 4. Using a plier or flat-tipped (-) screwdriver, remove the BJ boot bands (A). 5. Remove the BJ boot. ...
